B.Eng (Mechatronics)
anithite
Karma: 375
Alternate POV
Science fiction. < 10,000 words. A commissioned re-write of Eliezer Yudkowsky’s That Alien Message https://alicorn.elcenia.com/stories/starwink.shtml
since it hasn’t been linked so far and doesn’t seem to be linked from the original
TLDR:autofac requires solving “make (almost) arbitrary metal parts” problem but that won’t close the loop. Hard problem is building automated/robust re-implementation of some of the economy requiring engineering effort not trial and error. Bottleneck is that including for autofac. Need STEM AI (Engineering AI mostly). Once that happens, economy gets taken over and grows rapidly as things start to actually work.
To expand on that:
“make (almost) arbitrary metal parts”can generate a lot of economic value
requires essentially giant github repo of:
hardware designs:machine tools, robots, electronics
software:for machines/electronics, non-ai automation
better CAD/CAM (this is still mostly unsolved (CF:white collar CAD/CAM workers))
AI for tricky robotics stuff
estimate:100-1000 engineer years of labor from 99th percentile engineers.
Median engineers are counterproductive as demonstrated by current automation efforts not working.
EG:we had two robots develop “nerve damage” type repetitive strain injury because badly routed wires flexed too much. If designers aren’t careful/mindful of all design details things won’t be reliable.
This extends to sub-components.
Closing the loop needs much more than just “make (almost) arbitrary metal parts”. “build a steel mill and wire drawing equipment”, is just the start. There are too many vitamins needed representing unimplemented processesA minimalist industrial core needs things like:
PCB/electronics manufacturing (including components)
IC manufacturing is its own mess
a lot of chemistry for plastics/lubricants
raw materials production (rock --> metal) and associated equipment
wire
Those in turn imply other things like:
refractory materials for furnaces
corrosion resistant coatings (nickel?, chromium?)
non-traditional machining (try making a wire drawing die with a milling machine/lathe)
ECM/EDM is unavoidable for many things
Things just snowball from there.
Efficiency improvements like carbide+coatings for cutting tools are also economically justified.
All of this is possible to design/build into an even bigger self-reproducing automated system but requires more engineer-hours put into a truly enormous git repo.
STEM AI development (“E” emphasis) is the enabler.
Addendum: simplifying the machine tools and robotsSimplifications can be made to cut down on vitamin cost of machine tools. Hydraulics really helps IMO:
servohydraulics for most motion (EG:linear machine tool axes, robots) to cut down on motor sizes and simplify manufacturing
efficiency is worse, but saves enormously on power electronics and manufacturing complexity.
Similar principles to hydraulic power steering used in cars.
Boston Dynamics ATLAS Robot uses rotary equivalent for joints (I think).
hydrostatic bearings for rotary/linear motion in machine tools.
No hardened metal parts like in ball/roller bearings
Feeding fluid without flexible hoses across linear axes via structure similar to a double ended hydraulic cylinder. Just need two sliding rod seals and a hollow rod. Hole in the middle of the center rod lets fluid into the space between the rod seals.
Both bearings and motion can run off a single shared high pressure oil supply. Treat it like electricity/compressed-air and use one big pump for lots of machines/robots.
End result: machine tools with big spindle motors and small control motors for all axes. Robots use rotary equivalent. Massive reduction in per-axis power electronics, no ballscrews, no robot joint gears.
For Linear/rotary position encoders, calibrated capacitive encoders (same as used in digital calipers) are simple and needs just PCB manufacturing. Optical barcode based systems are also attractive but require an optical mouse worth of electronics/optics per axis, and maybe glass optics too.
The key part of the Autofac, the part that kept it from being built before, is the AI that runs it.
That’s what’s doing the work here.
We can’t automate machining because an AI that can control a robot arm to do typical machinist things (EG:changing cutting tool inserts, removing stringy steel-wool-like tangles of chips, etc.) doesn’t exist or is not deployed.
If you have a robot arm + software solution that can do that it would massively drop operational costs which would lead to exponential growth.
The core problem is that currently we need the humans there.
To give concrete examples, a previous company where I worked had been trying to fully automate production for more than a decade. They had robotic machining cells with machine tools, parts cleaners and coordinate measuring machines to measure finished parts. Normal production was mostly automated in the sense that hands off production runs of 6+ hours were common, though particular cells might be needy and require frequent attention.
What humans had to do:
Changing cutting tools isn’t automated. An operator goes in with a screwdriver and box of carbide inserts 1-2x per shift.
The operators do a 30-60 minute setup to get part dimensions on size after changing inserts.
Rough machining can zero tools outside the machine since their tolerances are larger but someone is sitting there with a T-handle wrench so the 5-10 inserts on an indexable end mill have fresh cutting edges.
Intermittent problems operators handled:
A part isn’t perfectly clean when measuring. Bad measurement leads to bad adjustment and 1-2 parts are scrap
chips are too stringy and tangle up, clear the tangle every 15 mins
chips are getting between a part and fixture and messing up alignment, clean intermittently and pray.
That’s ignoring stupider stuff like:
Our measurement data processing software just ate the data for a production run so we have to stop production and remeasure 100 parts.
someone accidentally deleted some files so (same)
We don’t have the CAM done for this part scheduled to be produced so … find something else we can run or sit idle.
The employee running a CAM software workflow didn’t double-check the tool-paths and there’s a collision.
And that’s before you get to maintenance issues and (arguably) design defects in the machines themselves leading to frequent breakdowns.
The vision was that a completely automated system would respond to customer orders and schedule parts to be produced with AGVs carrying parts between operations. In practice the AGVs sta there for 10+ years because even the simple things proved nearly impossible to automate completely.
Conclusion
Despite all the problems, the automated cells were more productive than manual production (robots are consistent and don’t need breaks) and the company was making a lot of money. Not great automation is much much better than using manual operators.
It’s hard to grasp how much everything just barely works until you’ve spent a year somewhere that is trying to automate. Barely works is the standard in industry AFAIK so humans are still highly necessary.
It is, in theory, possible to automate almost everything and to build reliable machines and automation. The problem is O-ring theory of economic development. If tomorrow median IQ jumps +2SD automation would rapidly start to just work as actually good solutions are put in place. As is, organizations have to fight against institutional knowledge loss (employees leaving) just to maintain competence.
If we consider each (include,exclude) decision for (1,2,3,4,5) as a separate question, error rates are 20%-ish. Much better than random guessing. So why does it make mistakes?
If bottlenecking on data is the problem, more data in the image should kill performance. So how about a grid of 3 digit numbers (random vals in range 100...999)?

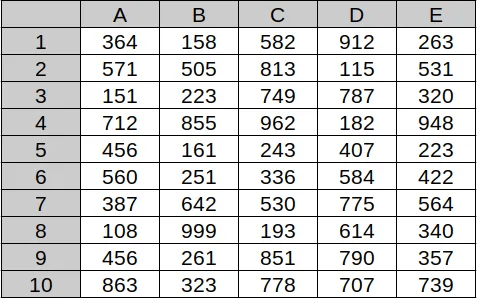

3.5 sonnet does perfectly. Perfect score answering lookup(row/col) and (find_row_col(number), find duplicates and transcription to CSV.
So this isn’t a bottleneck like human working memory. Maybe we need to use a higher resolution image so it has more tokens to “think” with? That doesn’t seem to work either for the above yellow areas thing either though.
I’m guessing this is straightforward failure to generalize. Tables of numbers are well represented in the training data (possibly synthetic data too), visual geometry puzzles, not so much. The model has learned a few visual algorithms but hasn’t been forced to generalise yet.
Root cause might be some stupid performance thing that screws up image perception the same way BPE text encoding messes up byte level text perception. I’m guessing sparse attention.
Text representations
Text representations are no panacea. Often similar problems (EG:rotate this grid) have very formatting dependent performance. Looking for sub-tasks that are probably more common in training data and composing with those (EG:rotate by composing transpose and mirror operations) allows a model to do tasks it otherwise couldn’t. Text has generalisation issues just like with images.
If Claude3.5 sonnet has pushed the frontier in tetris that would be evidence for generalisation. I predict it still fails badly.
It’s actually a lot worse than that.
Q:Which numbers are above a yellow region in the image?
GPT4o: [2,4]
GPT4: [4,5]
Claude 3.5 Sonnet: [2,5]
Claude sonnet describes the image as follows:
User: List the numbers in the above image, how are they placed in the image? What’s below them?The numbers shown in the image are:
1, 2, 3, 4, 5
These numbers are placed in a single horizontal row, appearing to be in separate cells or boxes arranged from left to right in ascending numerical order. Each number occupies its own cell, creating a simple table-like structure with 5 columns.
Below the numbers, there are cells or boxes that correspond to each number. Some of these cells are colored, while others are not. Specifically:Below number 1: The cell is white or uncolored.
Below number 2: The cell is colored yellow.
Below number 3: The cell is white or uncolored.
Below number 4: The cell is white or uncolored.
Below number 5: The cell is colored yellow.
So, out of the 5 cells below the numbers, two are colored yellow (under 2 and 5), while the rest are white or uncolored.
So these models have very very bad visuospatial abilities.
This seems like a problem that’s will be easy to solve with some synthetic training data.
TLDR:Memory encryption alone is indeed not enough. Modifications and rollback must be prevented too.
memory encryption and authentication has come a long way
Unless there’s a massive shift in ML architectures to doing lots of tiny reads/writes, overheads will be tiny. I’d guesstimate the following:
negligible performance drop / chip area increase
~1% of DRAM and cache space[1]
It’s hard to build hardware or datacenters that resists sabotage if you don’t do this. You end up having to trust the maintenance people aren’t messing with the equipment and the factories haven’t added any surprises to the PCBs. With the right security hardware, you trust TSMC and their immidiate suppliers and no one else.
Not sure if we have the technical competence to pull it off. Apple’s likely one of the few that’s even close to secure and it took them more than a decade of expensive lessons to get there. Still, we should put in the effort.
in any case, overall I suspect the benefit-to-effort ratio is higher elsewhere. I would focus on making sure the AI isn’t capable of reading its own RAM in the first place, and isn’t trying to.
Agreed that alignment is going to be the harder problem. Considering the amount of fail when it comes to building correct security hardware that operates using known principles … things aren’t looking great.
</TLDR> rest of comment is just details
Morphable Counters: Enabling Compact Integrity Trees For Low-Overhead Secure Memories
Memory contents protected with MACs are still vulnerable to tampering through replay attacks. For example, an adversary can replace a tuple of { Data, MAC, Counter } in memory with older values without detection. Integrity-trees [7], [13], [20] prevent replay attacks using multiple levels of MACs in memory, with each level ensuring the integrity of the level below. Each level is smaller than the level below, with the root small enough to be securely stored on-chip.
[improvement TLDR for this paper: they find a data compression scheme for counters to increase the tree branching factor to 128 per level from 64 without increasing re-encryption when counters overflow]Performance cost
Overheads are usually quite low for CPU workloads:
<1% extra DRAM required[1]
<<10% execution time increase
Executable code can be protected with negligible overhead by increasing the size of the rewritable authenticated blocks for a given counter to 4KB or more. Overhead is then comparable to the page table.
For typical ML workloads, the smallest data block is already 2x larger (GPU cache lines 128 bytes vs 64 bytes on CPU gives 2x reduction). Access patterns should be nice too, large contiguous reads/writes.Only some unusual workloads see significant slowdown (EG: large graph traversal/modification) but this can be on the order of 3x.[2]
A real example (intel SGX)
Use case: launch an application in a “secure enclave” so that host operating system can’t read it or tamper with it.
It used an older memory protection scheme:
hash tree
Each 64 byte chunk of memory is protected by an 8 byte MAC
MACs are 8x smaller than the data they protect so each tree level is 8x smaller
split counter modes in the linked paper can do 128x per level
The memory encryption works.
If intel SGX enclave memory is modified, this is detected and the whole CPU locks up.
SGX was not secure. The memory encryption/authentication is solid. The rest … not so much. Wikipedia lists 8 separate vulnerabilities including ones that allow leaking of the remote attestation keys. That’s before you get to attacks on other parts of the chip and security software that allow dumping all the keys stored on chip allowing complete emulation.
AMD didn’t do any better of course One Glitch to Rule Them All: Fault Injection Attacks Against AMD’s Secure Encrypted Virtualization
How low overheads are achieved
ECC (error correcting code) memory includes extra chips to store error correction data. Repurposing this to store MACs +10 bit ECC gets rid of extra data accesses. As long as we have the counters cached for that section of memory there’s no extra overhead. Tradeoff is going from ability to correct 2 flipped bits to only correcting 1 flipped bit.
DRAM internally reads/writes lots of data at once as part of a row. standard DDR memory reads 8KB rows rather than just a 64B cache line. We can store tree parts for a row inside that row to reduce read/write latency/cost since row switches are expensive.
Memory that is rarely changed (EG:executable code) can be protected as a single large block. If we don’t need to read/write individual 64 byte chunks, then a single 4KiB page can be a rewritable unit. Overhead is then negligible if you can store MACs in place of an ECC code.
Counters don’t need to be encrypted, just authenticated. verification can be parallelized if you have the memory bandwidth to do so.
can also delay verification and assume data is fine, if verification fails, entire chip shuts down to prevent bad results from getting out.
- ^
Technically we need +12.5% to store MAC tags. If we assume ECC (error correcting code) memory is in use, which already has +12.5% for ECC, we can store MAC tags + smaller ECC at the cost of 1 bit of error correction.
- ^
Random reads/writes bloat memory traffic by >3x since we need to deal with 2+ uncached tree levels. We can hide latency by delaying verify of higher tree levels and panicking if it fails before results can leave chip (Intel SGX does exactly this). But if most traffic bloats, we bottleneck on memory bandwidth and perf drops a lot.
What you’re describing above is how Bitlocker on Windows works on every modern Windows PC. The startup process involves a chain of trust with various bootloaders verifying the next thing to start and handing off keys until windows starts. Crucially, the keys are different if you start something that’s not windows (IE:not signed by Microsoft). You can’t just boot Linux and decrypt the drive since different keys would be generated for Linux during boot and they won’t decrypt the drive.
Mobile devices and game consoles are even more locked down. If there’s no bootloader unlock from your carrier or device manufacturer and no vulnerability (hardware or software) to be found, you’re stuck with the stock OS. You can’t boot something else because the chip will refuse to boot anything not signed by the OEM/Carrier. You can’t downgrade because fuses have been blown to prevent it and enforce a minimum revision number. Nothing booted outside the chip will have the keys locked up inside it needed to decrypt things and do remote attestation.
Root isn’t full control
Having root on a device isn’t the silver bullet it once was. Security is still kind of terrible and people don’t do enough to lock everything down properly, but the modern approach seems to be: 1) isolate security critical properties/code 2) put it in a secure armored protected box somewhere inside the chip. 3) make sure you don’t stuff enough crap inside the box the attacker can compromise via a bug too.
They tend to fail in a couple of ways
Pointless isolation (EG:lock encryption keys inside a box but let the user ask it to encrypt/decrypt anything)
the box isn’t hack proof (examples below)
The stuff too much stuff inside the box (EG: a full Java virtual machine and a webserver)
I expect ML accelerator security to be full of holes. They won’t get it right, but it is possible in principle.
ML accelerator security wish-list
As for what we might want for an ML accelerator:
Separating out enforcement of security critical properties:
restrict communications
supervisory code configures/approves communication channels such that all data in/out must be encrypted
There’s still steganography. With complete control over code that can read the weights or activations we can hide data in message timing for example
Still, protecting weights/activations in transit is a good start.
can enforce “who can talk to who”
example:ensure inference outputs must go through supervision model that OKs them as safe.
Supervision inference chip can then send data to API server then to customer
Inference chip literally can’t send data anywhere but the supervision model
can enforce network isolation for dangerous experimental system (though you really should be using airgaps for that)
Enforcing code signing like what apple does. Current Gen GPUs support virtualisation and user/kernel modes. Control what code has access to what data for reading/writing. Code should not have write access to itself. Attackers would have to find return oriented programming attacks or similar that could work on GPU shader code. This makes life harder for the attacker.
Apple does this on newer SOCs to prevent execution of non-signed code.
Doing that would help a lot. Not sure how well that plays with infiniband/NVlink networking but that can be encrypted too in principle. If a virtual memory system is implemented, it’s not that hard to add a field to the page table for an encryption key index.
Boundaries of the trusted system
You’ll need to manage keys and securely communicate with all the accelerator chips. This likely involves hardware security modules that are extra super duper secure. Decryption keys for data chips must work on and for inter-chip communication are sent securely to individual accelerator chips similar to how keys are sent to cable TV boxes to allow them to decrypt programs they have paid for.
This is how you actually enforce access control.
If a message is not for you, if you aren’t supposed to read/write that part of the distributed virtual memory space, you don’t get keys to decrypt it. Simple and effective.
“You” the running code never touch the keys. The supervisory code doesn’t touch the keys. Specialised crypto hardware unwraps the key and then uses it for (en/de)cryption without any software in the chip ever having access to it.
Hardware encryption likely means that dedicated on-chip hardware to handle keys and decrypting weights and activations on-the-fly.
The hardware/software divide here is likely a bit fuzzy but having dedicated hardware or a separate on-chip core makes it easier to isolate and accelerate the security critical operations. If security costs too much performance, people will be tempted to turn it off.
Encrypting data in motion and data at rest (in GPU memory) makes sense since this minimizes trust. An attacker with hardware access will have a hard time getting weights and activations unless they can get data directly off the chip.
Many-key signoff is nuclear-lauch-style security where multiple keyholders must use their keys to approve an action. The idea being that a single rogue employee can’t do something bad like copy model weights to an internet server or change inference code to add a side channel that leaks model weights or to sabotage inference misuse prevention/monitoring.
This is commonly done in high security fields like banking where several employees hold key shares that must be used together to sign code to be deployed on hardware security modules.
Vulnerable world hypothesis (but takeover risk rather than destruction risk). That + first mover advantage could stop things pretty decisively without requiring ASI alignment
As an example, taking over most networked computing devices seems feasible in principle with thousands of +2SD AI programmers/security-researchers. That requires an Alpha-go level breakthrough for RL as applied to LLM programmer-agents.
One especially low risk/complexity option is a stealthy takeover of other AI lab’s compute then faking another AI winter. This might get you most of the compute and impact you care about without actively pissing off everyone.
If more confident in jailbreak prevention and software hardening, secrecy is less important.
First mover advantage depends on ability to fix vulnerabilities and harden infrastructure to prevent a second group from taking over. To the extent AI is required for management, jailbreak prevention/mitigation will also be needed.
Slower is better obviously but as to the inevitability of ASI, I think reaching top 99% human capabilities in a handful of domains is enough to stop the current race. Getting there is probably not too dangerous.
Current ATGMs poke a hole in armor with a very fast jet of metal (1-10km/s). Kinetic penetrators do something similar using a tank gun rather than specially shaped explosives.
“Poke hole through armor” is the approach used by almost every weapon. A small hole is the most efficient way to get to the squishy insides. Cutting a slot would take more energy. Blunt impact only works on flimsy squishy things. A solid shell of armor easily stopped thrown rocks in antiquity. Explosive over-pressure is similarly obsolete against armored targets.
TLDR:”poke hole then destroy squishy insides” is the only efficient strategy against armor.
Modern vehicles/military stuff are armored shells protecting air+critical_bits+people
Eliminate the people and the critical bits can be compacted. The same sized vehicle can afford to split critical systems into smaller distributed modules.
Now the enemy has make a lot more holes and doesn’t know where to put them to hit anything important.
This massively changes offense/defence balance. I’d guess by a factor of >10. Batteries have absurd power densities so taking out 75% of a vehicle’s batteries just reduces endurance. Only way to get a mobility kill is to take out wheels.
There are still design challenges:
how to avoid ammo cook-off and chain reactions.
misdirection around wheel motors (improves tradeoffs)
efficient manufacturing
comms/radar (antenna has to be mounted externally)
Zerg rush
Quantity has a quality of its own. Military vehicles are created by the thousands, cars by the millions. Probably something similarly sized or a bit smaller, powered by an ICE engine and mass produced would be the best next gen option.
EMP mostly affects power grid because power lines act like big antennas. Small digital devices are built to avoid internal RF like signals leaking out (thanks again FCC) so EMP doesn’t leak in very well. DIY crud can be done badly enough to be vulnerable but basically run wires together in bundles out from the middle with no loops and there’s no problems.
Only semi-vulnerable point is communications because radios are connected to antennas.
Best option for frying radios isn’t EMP, but rather sending high power radio signal at whatever frequency antenna best receives.
RF receiver can be damaged by high power input but circuitry can be added to block/shunt high power signals. Antennas that do both receive and transmit (especially high power transmit) may already be protected by the “switch” that connects rx and tx paths for free. Parts cost would be pretty minimal to retrofit though. Very high frequency or tight integration makes retrofitting impractical. Can’t add extra protection to a phased array antenna like starlink dish but it can definitely be built in.
Also front-line units whose radios facing the enemy are being fried are likely soon to be scrap (hopefully along with the thing doing the frying).
RF jamming, communication and other concerns
TLDR: Jamming is hard when comms system is designed to resist it. Civilian stuff isn’t but military is and can be quite resistant. Frequency hopping makes jamming ineffective if you don’t care about stealth. Phased array antennas are getting cheaper and make things stealthier by increasing directivity.(starlink terminal costs $1300 and has 40dbi gain). Very expensive comms systems on fighter jets using mm-wave comms and phased array antennas can do gigabit+ links in presence of jamming undetected.
civilian stuff is trivial to jam
EG:sending disconnection messages to disconnect wifi devices requires very little power
most civvy stuff sends long messages, if you see the start of a message you can “scream” very loudly to disrupt part of it and it gets dropped.
Civvy stuff like WIFI BT and cellular has strict transmit power limits typically <1W of transmit power.
TLDR: jamming civvy stuff requires less power than transmitting it. Still, amplifiers and directional antennas can help in the short term.
military stuff hops from one frequency to another using a keyed unpredictable algorithm.
Sender and receiver have synchronized clocks and spreading keys so know what frequency to use when. Hop time is short enough jammer can’t respond in time.
Fundamentals of Jamming radio signals (doesn’t favor jamming)
Jammer fills big chunk of radio spectrum with some amount of watts/MHz of noise
EG:Russian R-330ZH puts out 10KW from 100MHz to 2GHz (approx 5KW/GHz or 5W/MHz)
more than enough to drown out civvy comms like wifi that use <<1W signal spanning 10-100MHz of bandwidth even with short link far away from jammer.
Comms designed to resist jamming can use 10W+ and reduce bandwidth of transmission as much as needed at cost of less bits/second.
low bandwidth link (100kb/s) with reasonable power budget is impossible to jam practically until jammer is much much closer to receiver than transmitter.
GPS and satcom signals easy to jam because of large distance to satellite and power limits.
Jamming increases required power density to get signal through intelligibly. Transmitter has to increase power or use narrower transmit spectrum. Fundamentally signal to noise ratio decreases and Joules/bit increases.
Communication Stealth
Jammer + phased array antennas + very powerful computer gives ability to locate transmitters
Jammer forces transmitters to use more power
Phased array antennas + supercomputer:
computer calculates/subtracts reflected jamming signal
Phased array antenna+computer acts like telescope to find “dimmer” signals in background noise lowering detection threshold
Fundamental tradeoff for transmitter
directional antennas/phased arrays
increases power sent/received to/from particular direction
bigger antenna with more sub-elements increases directionality/gain
Starlink terminals are big phased array antennas
this quora answer gives some good numbers on performance
Starlink terminal gives approx 3000x (35dbi) more power in chosen direction vs omnidirectional antenna
Nessesary to communicate with satellite 500+km away
Starlink terminals are pretty cheap
smaller phased arrays for drone-drone comms should be cheaper.
drone that is just a big Yagi antenna also possible and ludicrously cheap.
stealthy/jam immune comms for line of sight data links at km ranges seem quite practical.
development pressure for jam resistant comms and associated tech
little development pressure on civvy side B/C FCC and similar govt. orgs abroad shut down jammers
military and satcom will drive development more slowly
FCC limits on transmit power can also help
Phased array transmit/receive improves signal/noise
This is partly driving wifi to use more antennas to improve bandwidth/reliability
hobbyist drone scene could also help (directional antennas for ground to drone comms without requiring more power or gimbals)
Self driving cars have to be (almost)perfectly reliable and never have an at fault accident.
Meanwhile cluster munitions are being banned because submunitions can have 2-30% failure rates leaving unexploded ordinance everywhere.
In some cases avoiding civvy casualties may be a similar barrier since distinguishing civvy from enemy reliably is hard but militaries are pretty tolerant to collateral damage. Significant failure rates are tolerable as long as there’s no exploitable weaknesses.
Distributed positioning systems
Time of flight distance determination is in some newer Wifi chips/standards for indoor positioning.
Time of flight across a swarm of drones gives drone-drone distances which is enough to build a very robust distributed positioning system. Absolute positioning can depend on other sensors like cameras or phased array GPS receivers, ground drones or whatever else is convenient.
Overhead is negligible because military would use symmetric cryptography. Message authentication code can be N bits for 2^-n chance of forgery. 48-96 bits is likely sweet spot and barely doubles size for even tiny messages.
Elliptic curve crypto is there if for some reason key distribution is a terrible burden. typical ECC signatures are 64 bytes (512 bits) but 48 bytes is easy and 32 bytes possible with pairing based ECC. If signature size is an issue, use asymmetric crypto to negotiate a symmetric key then use symmetric crypto for further messages with tight timing limits.
Current landmines are very effective because targets are squishy/fragile:
Antipersonnel:
take off a foot
spray shrapnel
Antitank/vehicle:
cut track /damage tires
poke a hole with a shaped charge and spray metal into vehicle insides
Clearing an area for people is hard
-
drones can be much less squishy
need more explosives to credibly threaten them
-
Eliminating mine threat requires
clearing a path (no mines buried under transit corridor)
mine clearing vehicle
use line charge
block sensors so off route mines can’t target vehicles
Inflatable barriers that block line of sight/radar
This is enough to deal with immobile off route mines. If the minefield has active sensors, those can be spoofed and/or destroyed or blocked at slightly higher expense. Past this, the mines have to start moving to be a threat and then you’re dealing with drones vs. drones, not mines.
Ideal mine clearing robots and drones in general should be very resilient:
No squishy center like people filled vehicles.
battery powered drone with per wheel motors and multi-part battery pack has no single point of failure.
Doing meaningful damage to such a drone is hard.
flimsy exterior can hide interior parts from inspection/targeting.
Vulnerable systems with fluid like cooling/hydraulics can include isolation valves and redundancy.
alternatively, no fluids, air for cooling and electric motors/generators/batteries?
multiple locations/configurations for important components that can be moved (EG:battery/computers)
I think GPT-4 and friends are missing the cognitive machinery and grid representations to make this work. You’re also making the task harder by giving them a less accessible interface.
My guess is they have pretty well developed what/where feature detectors for smaller numbers of objects but grids and visuospatial problems are not well handled.
The problem interface is also not accessible:
There’s a lot of extra detail to parse
Grid is made up of gridlines and colored squares
colored squares of fallen pieces serve no purpose but to confuse model
A more accessible interface would have a pixel grid with three colors for empty/filled/falling
Rather than jump directly to Tetris with extraneous details, you might want to check for relevant skills first.
predict the grid end state after a piece falls
model rotation of a piece
Rotation works fine for small grids.
Predicting drop results:
Row first representations gives mediocre results
GPT4 can’t reliably isolate the Nth token in a line or understand relationships between nth tokens across lines
dropped squares are in the right general area
general area of the drop gets mangled
rows do always have 10 cells/row
column first representations worked pretty well.
I’m using a text interface where the grid is represented as 1 token/square. Here’s an example:
0 x _ _ _ _ _ 1 x x _ _ _ _ 2 x x _ _ _ _ 3 x x _ _ _ _ 4 _ x _ _ o o 5 _ _ _ o o _ 6 _ _ _ _ _ _ 7 _ _ _ _ _ _ 8 x x _ _ _ _ 9 x _ _ _ _ _GPT4 can successfully predict the end state after the S piece falls. Though it works better if it isolates the relevant rows, works with those and then puts everything back together.
Row 4: _ x o o _ _ Row 5: _ o o _ _ _making things easier
columns as lines keeps verticals together
important for executing simple strategies
gravity acts vertically
Rows as lines is better for seeing voids blocking lines from being eliminated
not required for simple strategies
Row based representations with rows output from top to bottom suffer from prediction errors for piece dropping. Common error is predicting dropped piece square in higher row and duplicating such squares. Output that flips state upside down with lower rows first might help in much the same way as it helps to do addition starting with least significant digit.
This conflicts with model’s innate tendency to make gravity direction downwards on page.
Possibly adding coordinates to each cell could help.
The easiest route to mediocre performance is likely a 1.5d approach:
present game state in column first form
find max_height[col] over all columns
find step[n]=max_height[n+1]-max_height[n]
pattern match step[n] series to find hole current piece can fit into
This breaks the task down into subtasks the model can do (string manipulation, string matching, single digit addition/subtraction). Though this isn’t very satisfying from a model competence perspective.
Interestingly the web interface version really wants to use python instead of solving the problem directly.
Not so worried about country vs. country conflicts. Terrorism/asymmetric is bigger problem since cheap slaughterbots will proliferate. Hopefully intelligence agencies can deal with that more cheaply than putting in physical defenses and hard kill systems everywhere.
Still don’t expect much impact before we get STEM AI and everything goes off the rails.
Also without actual fights how would one side know the relative strength of their drone system
Relative strength is hard to gauge but getting reasonable perf/$ is likely easy. Then just compare budgets adjusted for corruption/Purchasing power parity/R&D amortisation.
Building an effective drone army is about tactical rock paper scissors and performance / $. Perf / $ emphasis makes live fire tests cheap. Live fire test data as baseline makes simulations accurate. RF/comms performance will be straightforward to model and military is actually putting work into cybersecurity because they’re not complete morons.
Add to that the usual espionage stuff and I expect govts to know what will work and what their enemies are doing.
Ukraine war was allegedly failure to predict the human element (will to fight) with big intelligence agencies having bad models. Drone armies don’t suffer from morale problems and match theoretical models better.
Disclaimer:Short AI timelines imply we won’t see this stuff much before AI makes things weird
This is all well and good in theory but mostly bottlenecked on software/implementation/manufacturing.
with the right software/hardware current military is obsolete
but no one has that hardware/software yet
EG:no one makes an airborne sharpshooter drone(edit:cross that one off the list)Black sea is not currently full of Ukrainian anti-ship drones + comms relays
no drone swarms/networking/autonomy yet
I expect current militaries to successfully adapt before/as new drones emerge
soft kill systems (Jam/Hack) will be effective against cheap off the shelf consumer crap
hard kill systems (Airburst/Laser) exist and will still be effective
laser cost/KW has been dropping rapidly
minimal viable product is enough for now
Ukraine war still involves squishy human soldiers and TRENCHES
what’s the minimum viable slaughterbot
can it be reuseable (bomber instead of kamikaze) to reduce cost per strike
Drone warfare engame concerns are:
kill/death ratio
better per $ effectiveness
conflict budget
USA can outspend opponents at much higher than 10:1 ratio
R&D budget/amortisation
Economies of scale likely overdetermine winners in drone vs drone warfare since quantity leads to cheaper more effective drones
A few quibbles
Ground drones have big advantages
better payload/efficiency/endurance compared to flying
cost can be very low (similar to car/truck/ATV)
can use cover effectively
indirect fire is much easier
launch cheap time fused shells using gun barrel
downside is 2 or 2.5d mobility.
Vulnerable to landmines/obstacles unlike flying drones
navigation is harder
line of site for good RF comms is harder
Use radio, not light for comms.
optical is immature and has downsides
RF handles occlusion better (smoke, walls, etc.)
RF is fine aside from non-jamming resistant civilian stuff like WIFI
Development pressure not there to make mobile free space optical cheap/reliable
jamming isn’t too significant
spread spectrum and frequency hopping is very effective
jamming power required to stop comms is enormous, have to cover all of spectrum with noise
directional antennas and phased arrays give some directionality and make jamming harder
phased array RF can double as radar
stealthy comms can use spread spectrum with transmit power below noise floor
need radio telescope equivalent to see if something is an RF hotspot transmitting noise like signal
Definitely agree that private business data could advance capabilities if it were made available/accessible. Unsupervised Learning over all private CAD/CAM data would massively improve visuo-spatial reasoning which current models are bad at. Real problems to solve would be similarly useful as ground truth for reinforcement learning. Not having that will slow things down.
Once long(er) time horizon tasks can be solved though I expect rapid capabilities improvement. Likely a tipping point where AIs become able to do self-directed learning.
find technological thing: software/firmware/hardware
Connect the AI to it robustly.
For hardware, AI is going to brick it, either have lots of spares or be able to re-flash firmware at will
for software this is especially easy. Current AI companies are likely doing a LOT of RL on programming tasks in sandboxed environments.
AI plays with the thing and tries to get control of it
can you rewrite the software/firmware?
can you get it to do other cool stuff?
can the artefact interact with other things
send packets between wifi chips (how low can round trips time be pushed)
make sound with anything that has a motor
Some of this is commercially useful and can be sold as a service.
Hard drives are a good illustrative example. Here’s a hardware hacker reverse engineering and messing with the firmware to do something cool.
There is … so much hardware out there that can be bought cheaply and then connected to with basic soldering skills. In some cases, if soft-unbricking is possible, just buy and connect to ethernet/usb/power.
Revenue?
There’s a long tail (as measured by commercial value) of real world problems that are more accessible. On one end you have the subject of your article, software/devices/data at big companies. On the other, obsolete hardware whose mastery has zero value, like old hard disks. The distribution is somewhat continuous. Transaction costs for very low value stuff will set a floor on commercial viability but $1K+ opportunities are everywhere in my experience.
Not all companies will be as paranoid/obstructive. A small business will be happy using AI to write interface software for some piece of equipment to skip the usual pencil/paper --> excel-spreadsheet step. Many OEMs charge ridiculous prices for basic functionality and nickel and dime you for small bits of functionality since only their proprietary software can interface with their hardware. Reverse engineering software/firmware/hardware can be worth thousands of dollars. So much of it is terrible. AI competent at software/firmware/communication reverse engineering could unlock a lot of value from existing industrial equipment. OEMs can and are building new equipment to make this harder but industrial equipment already sold to customers isn’t so hardened.
IOT and home automation is another big pool of solvable problems. There’s some overlap between home automation and industrial automation. Industrial firmware/software complexity is often higher, but AI that learns how to reverse engineer IOT wireless microcontroller firmware could probably do the same for a PLC. Controlling a lighbulb is certainly easier than controlling a CNC lathe but similar software reverse engineering principles apply and the underlying plumbing is often similar.
