Knowledge is not just map/​territory resemblance

Financial status: This is independent research. I welcome financial support to make further posts like this possible.

Epistemic status: This is in-progress thinking.


This post is part of a sequence on the accumulation of knowledge. Our goal is to articulate what it means for knowledge to accumulate within a physical system.

The challenge is this: given a closed physical system, if I point to a region and tell you that “knowledge is accumulating” in this region, how would you test my claim? What are the physical characteristics of the accumulation of knowledge? We do not take some agent as the fundamental starting point but instead take a mechanistic physical system as the starting point, and look for a definition of knowledge accumulation in terms of physical patterns.

In this post I explore directly looking within the territory for a physical map that resembles the territory.

Example: Shipping container

In the shipping container example from the previous post, if we found within some region of interest a physical map with markings that clearly corresponded to the arrangement of items in the shipping container, then we could say, yes, knowledge exists within this region. If we revisited this region over several time steps and observed the markings on the map coming into closer and closer correspondence to the configuration of the overall shipping container then we could say that knowledge is accumulating there.

Example: Sailing ship

Suppose we examined a sailing ship from a few hundred years ago and asked whether knowledge was accumulating on that sailing ship. If we found physical sheets of paper with drawings of nearby coastlines then we could say, yes, there is a process happening on this ship that is resulting in the accumulation of knowledge.

Resemblance

But what exactly does it mean for one thing to resemble another? The original lesswrong 1.0 had the following header at the top of each page, pointing at a certain concept of map/​territory resemblance:

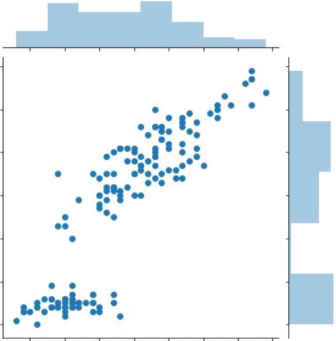

Suppose we converted both the “map” and “territory” image to grayscale and then looked at a 2D histogram of pixel intensities with pixels from the “map” on the X axis and pixels from the “territory” on the Y axis.

We would find that the “map” and “territory” pixel intensities are predictive of one another, in the sense that knowing the “map” pixel intensity gives us some information about the corresponding “territory” pixel intensity, even if we don’t know the location of the pixel in the image.

Now here we are just computing a resemblance between two images, neither of which is actually the territory. But we could go out and measure the average reflectivity of different parts of the surface of the Earth and compare those values to the street map above and get the same result. Or if we are asking whether knowledge is accumulating within a region of a cellular automata like Conway’s Game of Life then we could look for a connection between the on/​off configuration of cells in that region to the on/​off configuration of cells in the whole system using the same method.

We can take this method beyond pixel-wise computation. If we found a military planning room with figurines laid out on a flat surface then we could plot the position of those figurines against the coordinates of cities, people, or buildings in the physical world in order to discover whether these figurines represent accumulated knowledge.[1]

Counterexample: Digital computer

The problem with directly looking for a resemblance between map and territory is that maps might be represented in all sorts of ways. A map drawn on a physical sheet of paper is easy to recognize as a map because there is a direct relationship between the spatial layout of markings on the map and the spatial layout of objects in the world. But if instead of a physical sheet of paper the map were represented as a file on a digital computer then although we would still expect a relationship between the physical configuration of the computer’s memory units and the configuration of the coastline to exist, we wouldn’t expect to be able to discover it so easily.

General problem: Representation

Maps must exist physically within the territory but their representation might make it impossible to recognize them by looking at a single configuration of the system.

Conclusion

The accumulation of knowledge clearly does have a lot to do with a resemblance between map and territory, but any notion of resemblance that can be defined with respect to a single configuration of some system cannot provide both necessary and sufficient conditions for the accumulation of knowledge. The next post will examine notions of resemblance that go beyond a single configuration of the system.


  1. To determine whether two distributions are predictive of one another we can compute mutual information. The next post in this sequence also uses mutual information, but in a different way. In this post we are computing mutual information between the configurations of parts of the map and parts of the territory given a single configuration of the system, whereas in the next post we will compute mutual information between the whole configuration of the map and the whole configuration of the territory, given many configurations of the system acquired, for example, by running many simulations. ↩︎
