Transparency and AGI safety


Transparency is the problem of going inside the black box of an AI system and understanding exactly how it works, by tracking and understanding the processes in its internal state.

In this post, I’ll argue that making AI systems more transparent could be very useful from a longtermist or AI safety point of view. I’ll then review recent progress on this centered around the circuits program being pursued by the Clarity team at OpenAI, and finally point out some directions for future work that could be interesting to pursue.

Some definitions that I’ll use in this note are that

  • Transformative AI (TAI) is AI that precipitates a social transition on the scale of the Industrial Revolution.

  • Artificial general intelligence (AGI) is usually more vaguely defined as an AI system that can do anything that humans can do. Here, I’ll operationally take it to mean “AI that can outperform humans at the task of generating qualitative insights into technical AI safety research,” for instance by coming up with new research agendas that turn out to be fruitful.

Why should longtermists care about transparency?

I’ll start by summarizing my views on AI safety and why I think that transparency could help with it. The upshot is that I think that AGI is fairly likely to go well by default (in a sense that I’ll explain more below), but that work on transparency

  1. … could help to reduce our considerable uncertainties around AI timelines,

  2. … seems broadly useful, if not necessary, to solve the (inner) alignment problem in a world where the development of advanced AI doesn’t go well by default,

  3. … provides a solution in principle for AGI safety via control, and

  4. … could nonetheless be instrumentally useful for longtermists in a world where advanced AI goes well by default.

This section is organized according to these four items.

AI timelines are uncertain (and could be much longer than suggested by forecasts based on compute)

A first comment is that AI timelines seem to me to be rather uncertain, and in particular could be much longer than suggested by forecasts based on compute. This is because such forecasts assume that today’s algorithms + the datasets that will be available under business as usual will scale up to TAI or AGI given unlimited compute, but it’s not clear to me that this has to be true. Since the usefulness of AI safety research today likely decays with longer timelines due to a nearsightedness penalty, reducing these uncertainties seems important to shed light on how much we should be investing into AI safety research today.

More concretely, here is a strawman argument for why one might think that today’s algorithms will definitely be able to scale up to AGI:

A useful picture to have in mind when thinking about timelines is that ML algorithms are search algorithms over a space parametrized by the values of the model parameters to be learned, e.g. the space of weights for a neural network. Moreover, for neural networks in particular, the universal approximation theorem (UAT) tells us that for any (bounded) capability that we might want an AI system to have, there exists some search space containing models with that capability [^1]. From this point of view, the problem of trying to build an AI system with a given capability is naively just a balancing act between picking a search space large enough to contain such models, yet small enough that we can find those models in finite time, and increasing the amount of available compute relaxes the second bound.

However, the problem with this argument is that algorithms like SGD aren’t systematic searches over this space. Rather, they depend on the interplay of the model initialization with the choice of dataset /​ environment, which together pick out a (stochastic set of) path(s) over the naive search space [^2]. It could be that generic such paths would force us into some subspace of the search space, thereby invalidating the appeal to the UAT even in theory (in that it does us no good to say that we have models with desired capabilities somewhere in our search space if we don’t know how to find them).

This problem is related to other cruxes in AI forecasting. E.g.

  • Can we get to TAI by training blank-slate models?

A first and frequently debated crux is whether we can get to TAI from end-to-end training of models specified by relatively few bits of information at initialization, such as neural networks initialized with random weights. OpenAI in particular seems to take the affirmative view[^3], while people in academia, especially those with more of a neuroscience /​ cognitive science background, seem to think instead that we’ll have to hard-code in lots of inductive biases from neuroscience to get to AGI [^4].

From the point of view that we all agree that the UAT is true but are unsure if generic combinations of initialization + dataset will let us find the solutions that we want, this question is basically asking: “How important are the model initializations for reaching a desired outcome, keeping the dataset fixed?” E.g., we know that the dataset of video frames from a Coursera course is sufficient for some neural networks (that approximate whatever function it is that human brains compute) to learn the material in the course. But it could be that sufficiently human-like networks are very rare in the space of large neural networks, such that most of our efforts would have to go into indeed borrowing insights from neuroscience to reverse-engineer the appropriate initial conditions.

  • Will AGI require an “evolution-like” phase of pretraining RL agents in a simulation?

Another crux is around whether the development of AGI might require a pretraining phase where we train RL agents in a simulated environment on an objective different from what we ultimately want them to do.

From the present point of view that different model initializations + datasets map to different paths over an algorithm’s search space, the context here is that if we now would keep the initialization fixed, it could be that datasets leading to models with the desired capabilities are actually quite rare. Intuitively, a narrow basin of attraction to an advanced capability could reflect a need for curriculum learning. E.g., perhaps future AI systems that are able to do very well on high school math contests will turn out to be reliably trainable only starting from models that can already do arithmetic perfectly, while other models fed on datasets of math questions would just flail about in the search space and get stuck.

The cognitive abilities to learn efficiently, reason, plan, … are themselves advanced capabilities, and if this “hard paths hypothesis” is true, it could be that the path to AGI itself will require a curriculum learning sequence whose details we don’t yet understand [^5]. For example, Yann LeCun has suggested that a rudimentary form of concept-learning might emerge spontaneously from an embodied agent practicing self-supervised learning in an environment similar to ours:

“To learn that the world is three-dimensional, if we train our brains to predict what the world is going to look like when we move our head a little bit or when we switch from our left eye to our right eye view, the best explanation for how the world changes is the fact that every object (or pixel, if you want) has a depth because that explains parallax motion. So it’s quite possible to imagine that if we train ourselves to predict how the world changes as the camera moves, implicitly the system that is trained to do this will learn to represent depth, as a side effect. Now once you have depth, you have occlusion edges from objects, so you have objects. Once you have objects, you can make the difference between animate and inanimate objects [as] the ones whose trajectories are predictable or not. So that’s perhaps by which we build sort of a hierarchy of representations and concepts… just by observation.”

Others have suggested that the human capability to do math may have similar origins.

The narrower the path to AGI, the more valuable it seems to be if we could automate the search for that path, rather than trying to guess it by ourselves. This sort of “autocurricular learning” is what we would gain by having RL agents learn from self-play in a rich simulated environment.

To summarize, even if one assumes the UAT in the current deep learning paradigm, the choice of model initialization + dataset that would let us get to AGI may be highly non-generic. To the extent that this is true, it pushes towards (indefinitely) longer timelines than forecasted in analyses based on compute, since practitioners might then have to understand an unknown number of qualitatively new things around setting initial conditions for the search problem.

Motivation #1: Work on transparency could help to reduce this uncertainty

This leads to a first motivation for transparency research: that getting a better understanding of how today’s AI systems work seems useful to let us make better-educated guesses about how they might scale up.

For example, learning more about how GPT-3 works seems like it could help us to reason better about whether the task of text prediction by itself could ever lead to AGI, which competes with the hard paths hypothesis. (For examples of the type of insights that we might hope to gain from applying transparency tools, see Part 2 of this note below.)

Inner AGI alignment problems otherwise seem hard to solve

Let’s move on to how transparency could help with classic problems in AGI safety.

In a sentence, my understanding of the problem of AGI safety (see here for a nice review) is that agentic AGI would basically be like an alien, and sharing our world with more intelligent aliens generically seems bad; but since these aliens would be of our own design, maybe we can design them in ways that would turn out to be less bad.

There seems to be substantial disagreement even within this community, and certainly in the AI community at large, about whether AGI safety is a real problem that we’ll have to solve. (An alternative is that it could be solved by default instead, e.g. if AGI would turn out to be “non-agentic” by default.) I’ll say more about this in the next section and indeed am sympathetic to the contrarian view, but for now, let me assume that we want to solve the classic problem.

The ways that people go about trying to do this seem to fall into two categories:

  • alignment, which is the problem of how to make advanced AI systems actually do what we want, and

  • control, which is the stopgap measure of otherwise figuring out how to retain control over a misaligned AI (for example by retaining the ability to turn it off, despite its greater intelligence),

and I claim that transparency would be quite helpful to make progress in both directions.

Toy models of AGI

To reason about AGI, I find it helpful to imagine toy models for it which are grounded in situations that we understand. So suppose we assume the situation described above where the path to AGI goes through a step of pretraining RL agents on an “evolution-like” objective unrelated to what we actually want them to do. I assume this not because I think that AGI will definitely go this way, but because I think the alignment issues that come up in this case would encompass the ones that appear in more prosaic situations.

At the end of this pretraining step, we’d basically have a bunch of super smart aliens doing their own thing in a perfectly boxed simulation. How could we fine-tune them to do useful things for us without going off the rails? [^6]

This is some future version of a transfer learning problem, so we can take inspiration from transfer learning strategies for current RL systems. One of the first questions that people face when doing transfer learning in RL today is how to turn the target problem (to be transferred to) into a Markov decision process (MDP). If the target MDP is identical or very close to the source MDP (to be transferred from), then we can just transfer the learned policy wholesale and fine-tune it from there, keeping the same input/​output channels for our RL agent. If on the other hand the two are very far apart, it may be easier to design and train a new system on the target problem with different input/​output channels, keeping just some of the learned representations from the source network (e.g. by freezing the weights of the source network and coupling a new network to it).

By scaling up these two extremes, we reach two possible toy models for AGI:

  1. An “alien in a box”. The first is that we could imagine physically instantiating the pretrained RL agents directly into robot bodies, keeping the weights that they learned in simulation and the same input/​output channels; perhaps putting the robot bodies into additionally data-limited containers for safety; and then letting them update their weights on new inputs in real time. I think this is pretty close to what people had in mind in classic takes on AI safety like in Superintelligence.

  2. “Lobotomized aliens”. Alternatively, we could imagine somehow isolating the cognitively interesting parts of a pretrained RL agent from any motivational drives that it acquired in the simulation [^7] and retraining just those parts as if they were a “neural network 2.0″, somehow much better at learning things than today’s algorithms but otherwise fitting exactly into the current deep learning paradigm.

Subtypes of alignment problem

Returning to the alignment problem, it’s a big problem, and to tackle it we might want to split it up into smaller parts and tackle the parts separately. Different people have partitioned it in different ways, that fit more or less naturally with each of the toy models above.

From the machine learning (“lobotomized alien”) point of view, a natural way to partition the alignment problem is as

  • an outer alignment (specification) problem of making sure that our systems are designed with utility /​ loss functions that would make them do what we intend for them to do in theory, and

  • an inner alignment (distribution shift) problem of making sure that a system trained on a “theoretically correct” objective with a finite-sized training set would keep on pursuing that objective when deployed in a somewhat different environment than the one that it trained on.

From the more anthropomorphic “alien in a box” point of view on the other hand, one might instead find it natural to slice up the alignment problem into

  • a competence (translation) problem of making the AI system learn to understand what we want, and

  • an intent alignment problem of making the AI system care to do what we want, assuming that it understands us perfectly well.

A thing that nearly all of these components have in common though is that they involve having to account for emergent behavior that wasn’t part of the top-down specification of the AI system, and that therefore can’t be understood using only formal top-down arguments [^8]. In the first, ML-inspired split, this is basically by definition the partition of the problem into inner and outer alignment problems: the outer part is the part that we specify and the inner part is the part that we don’t. But in the second split, both the internal representations that the “alien” would use to understand us and the motivational drives that it acquires during “evolution” would be things that emerge from the evolutionary training process as opposed to things that we get to specify from the top down.

This problem of having to account for emergent misbehavior is quite general. Although it’s underscored by the ML paradigm of extremizing a fixed utility function, it goes well beyond that paradigm. Rather, it will be relevant as long as learning involves an interaction between a system with many degrees of freedom and noisy data, which I expect to be broadly true as more of a statement about the nature of data than a commitment to a particular type of algorithm.

Motivation #2: Transparency seems necessary to guard against emergent misbehavior

This leads to a second motivation for transparency research, which is that to defend against emergent misbehavior in all situations that an agentic AGI could encounter when deployed, it seems necessary to me that we understand something about the AI’s internal cognition.

This is because I usually see people point to three ideas for attacking distribution shift: adversarial training, transparency, and verification. But we can’t guarantee ahead of time that adversarial training will catch every failure mode, and verification requires that we characterize the space of possible inputs, which seems hard to scale up to future AI systems with arbitrarily large input/​output spaces [^9]. So this is in no way a proof but is a failure of my imagination otherwise (and I’d be very excited to hear about other ideas!).

As a sanity check, in Evan Hubinger’s recent review of 11 proposals for building safe AI, either sufficient interpretability or myopia seems to be a necessary step for inner alignment in all of the proposals, sometimes in combination with other things like adversarial training. I consider sufficiently myopic systems to be non-agentic and will discuss them in the next section.

Motivation #3: Exact transparency could solve AGI safety via control

A third motivation is that exact transparency would give us a mulligan: a chance to check if something could go catastrophically wrong with a system that we’ve built before we decide to deploy it in the real world. E.g. suppose that just by looking at the weights of a neural network, we could read off all of the knowledge encoded inside the network. Then you could imagine looking into the “mind” of a paperclip-making AI system, seeing that for some reason it had been learning things related to making biological weapons, and deciding against letting it run your paperclip-making factory.

More precisely, the idea here is that since learning is a continuous process, with transparency we could shut off and discard models in the act of acquiring dangerous competencies before they actually acquire those competencies. This could lay the foundation for a theoretically complete, if perhaps impractical solution to AI risk via control.

(I haven’t fleshed out how one would go from exact transparency to a full end-to-end solution for AGI safety via control, but it kind of seems like it should be possible by combining transparency with existing outer alignment techniques, say by automating a continuous monitoring process with more AI, and using some amplification-flavored thing to scale up to arbitrarily strong systems. The bottleneck here seems more likely to be that exact transparency is a very strong aspiration, that we’re nowhere near to in practice.)

What if AI will go well by default without any intervention from longtermists today?

Putting on my devil’s advocate hat, I’d now like to argue that advanced AI could go well by default in the sense that classic arguments for AI risk tend to rely on a vague notion of the AI being a “goal-directed agent,” yet I think that the first AI system capable of qualitatively accelerating progress on technical AI safety research may be safely “non-agentic”. My views here are similar to the ones in Eric Drexler’s CAIS paper.

This section is both orthogonal to the rest of the post and incomplete (it’s basically a first draft that I hesitated to include at all), so I’d recommend that people who are interested in the main story on transparency not spend too much time on it! At the same time, I’d be grateful for either pushback on this section or ideas on how to make it more precise.

Operationalizing agency

As we did above for alignment, let’s start by rounding up some definitions of goal-directed agency. Unfortunately, there doesn’t seem to be a canonical definition in the community.

In a recent take on this problem, Richard Ngo defines a system as being more “agenty” the more it exhibits each of six traits of self-awareness, planning, consequentialism, scale, coherence and flexibility. Of these, I’d especially like to emphasize the traits of

  • planning: “[the AI] considers a wide range of possible sequences of [actions] (let’s call them “plans”), including long plans”, and

  • scale: “[the AI’s] choices are sensitive to the effects of plans over large distances and long time horizons”,

for reasons that will soon become clear.

In response to Richard’s article, Ben Garfinkel defines a system as being more “agenty” the more it is

  1. useful to explain and predict the system’s actions in terms of its goals;

  2. the further those goals lie in the future; and

  3. the further those goals lie outside a system’s “domain of action” at any given time.

For example, AlphaGo does well on the first measure—it’s useful to explain its actions as trying to win a game of Go—but less well on measures two and three, since it only cares about the effects of its actions up to the end of a game, and never takes actions in “other domains” to further its goal within the domain of Go. Here, I’m especially interested in the implication from item 3 that an agent should be able to take different types of actions across unrelated domains.

For another take, we can look to the difference between supervised learning (SL) and reinforcement learning algorithms, since RL algorithms are generally considered to be more agentic than SL ones. Actually, SL is a special case of RL in a degenerate MDP where

  1. no matter which state the RL agent is in, actions taken by it either do or don’t return a reward of a fixed magnitude, after which

  2. the RL agent is teleported to a new random state.

In a typical MDP on the other hand, the magnitude of the reward signal depends on where the agent is in the state space of the MDP, which in turn depends on previous actions taken by the agent. This incentivizes an RL agent to learn sequences of actions that take it to more rewarding parts of the state space. If we coarse-grain coherent sequences of actions into new high-level ones (in a way that needs to be made more precise), then the main difference between SL and RL is that RL can lead to models with larger effective action spaces.

The point here is that our colloquial notion of agency seems to include a component where an agent should be able to take a wide range of high-level actions. This means that we can partly operationalize how “agenty” an AI system is by counting the number of high-level actions that it can take. It’s not a very satisfactory operationalization both because it only partly overlaps with what we really mean by agency, and because what counts as a “high-level action” isn’t well-defined.

Which things constrain a system’s high-level action space?

That said, let’s run with it and brainstorm which things would constrain a system’s high-level action space.

A trivial constraint comes from the system’s hard-coded, low-level action space. The number of high-level actions available to a system is combinatorially bounded by some function of the number of low-level actions available to it, and indeed it seems intuitively clear that AI systems with more restrictions on their output channels should be safer; there’s little room for an AI to be dangerous if its only way to influence the world is to suggest moves for a game of Go. The idea of making AI systems safe by restricting the size of their low-level action space has been discussed elsewhere under the name of “boxing”.

But with enough steps, even a very small space of low-level actions can give rise to emergent ones of great complexity, and the early AI risk literature is replete with scenarios where a boxed AI with few output channels finds a clever way to “get out of the box” (say, by broadcasting the recipe for a dangerous DNA sequence to a human accomplice in Morse code). So why doesn’t AlphaGo hide coded DNA sequences in its outputs? The additional ingredient is selection pressure, namely that a system will only learn those sequences of actions that it has incentive to learn during training.

More precisely, we can divide selection pressure into two types. There’s a global selection pressure where a system will only learn those actions that could plausibly help it to achieve its goals. However, this leaves one open to worries about instrumental convergence. For a stronger constraint, we need to invoke what one might call local selection pressure: that a system will only learn those actions that could plausibly help it to achieve its goals and are not too far from its existing repertoire of thoughts and actions. In deep learning, the technical sense in which this is true is that learning takes place via the explicitly local process of gradient descent. For more advanced systems that reason and plan such as ourselves, the analog would be that a system will only invest in capabilities that seem useful to it given its existing world-model, so e.g. wouldn’t think to master human psychology if it didn’t know that humans exist, even if this would be a globally useful instrumental goal.

As with the earlier discussion around emergent misalignment, this point is underscored by the current ML paradigm but goes beyond that paradigm. Rather, it depends on the far more general view that learning is a continuous process of incrementally improving on existing ideas.

Reasons that the first AGI may be safely non-agentic

Given the above, here are some reasons why the first AGI may be safely non-agentic, i.e. have too small of a high-level action space to be an existential threat. Recall that I’ve defined “AGI” to mean “an AI system that can generate qualitatively new insights into technical AI safety research.”

  • The first AGI may have write-only output channels reminiscent of “Oracle AI”.

The first reason is that since AI systems with strictly larger action spaces would take longer to train, there could be economic pressure towards the first AI system that can perform a given service being the one that does it with the fewest number of input/​output channels possible. (E.g. the USPS doesn’t train mail-sorting image classifiers to do ten other things besides making a guess for the zip code on a piece of mail.) This goes in the opposite direction to the usual handwaving that eventually, there may be some economic pressure towards building systems with large numbers of input/​output channels.

A minimal AI system that can write blog posts about AI safety, or otherwise do theoretical science research, doesn’t seem to require a large output space. It plausibly just needs to be able to write text into an offline word processor. This suggests that the first AGI may be close to what people have historically called an “Oracle AI”.

In my opinion, Oracle AIs already seem pretty safe by virtue of being well-boxed, without further qualification. If all they can do is write offline text, they would have to go through humans to cause an existential catastrophe. However, some might argue that a hypothetical Oracle AI that was very proficient at manipulating humans could trick its human handlers into taking dangerous actions on its behalf. So to strengthen the case, we should also appeal to selection pressure.

  • The first (oracle) AGI won’t have selection pressure to deceive humans.

To finish this argument, we would need to characterize what’s needed to do AI safety research and argue that there exists a limited curriculum to impart that knowledge that wouldn’t lead to deceptive oracle AI. I don’t have a totally satisfactory argument for this (hence the earlier caveat!), but one bit of intuition in this direction is that the transparency agenda in this rest of this document certainly doesn’t require deep (or any) knowledge of humans. The same seems true of at least a subset of other safety agendas, and we need only argue that AI that could accelerate progress in some parts of technical AI safety or otherwise change how we do intellectual work will come before plausibly dangerous agent AIs to reconsider how much to invest in object-level AI safety work today (since then it might make sense to defer some of the work to future researchers). We don’t need to prove that a safe AGI oracle would solve the entire problem of AGI safety in one go.

To summarize, if we expect that there will be a window of time in the future when non-agentic tool AIs will significantly change the way that we do research, then technical AI safety work today may not have much of a counterfactual impact on the future. If we are confident the first AGI will be a non-agentic tool, we may even want to accelerate capabilities progress towards it instead!

Again, this argument is incomplete and I’d welcome either help with it or pushback on it.

Motivation #4: Work on transparency could still be instrumentally valuable in such a world

Even in such a world though, there are some non-AGI-safety reasons that transparency research could be well-motivated today.

One reason is that work on transparency could help to make AI safer for any level of assumption about the strength of the AI, so could be used to facilitate deployment of narrow AI systems for other altruistic causes. In this sense, it seems like an especially “low-risk” area for an EA-minded person with a technical background to work on.

Another is that it could be helpful for EA cause prioritization via Motivation #1.

Finally, work on transparency could help with field-building. Transparency, broadly defined as “the natural science of AI systems,” seems like an area that’s likely to grow in coming years (as long as interest in AI as a whole is here to stay). Yann LeCun has said that AI today is an engineering science, and engineering discoveries often precede the establishment of new natural science fields. If this turns out to be true, then getting involved relatively early could allow people to build up career capital in AI, which seems like a generally useful thing for longtermists to have.

To be clear though, these are much weaker motivations than a direct belief that AI safety work today would help to reduce x-risk, and if a more precise argument in this direction would hold up, then it might be good for EA to reconsider how much we should invest in technical AI safety work today.

Summary of this section

To summarize, transparency—the problem of understanding why AI systems do what they doseems to me to be one of the safest bets for longtermists interested in AI safety to work on for several reasons, including that it could (1) help us to reduce uncertainties around AGI timelines, (2) be plausibly necessary to achieve inner alignment of advanced AI systems, (3) go most of the way towards providing a theoretical solution to AGI safety via control, and (4) be broadly useful for non-AGI-related reasons as well.

Towards transparent AI in practice

Let’s move on to how we might make AI systems more interpretable in practice.

I’ll anchor this part of the post around the circuits program being pursued by the Clarity team at OpenAI, which is an especially well-developed approach to transparency in current deep learning systems. I’ll first briefly review the program, then use some of the (well-known) gaps in it to motivate ideas for future work.

In addition to the published work that I’ve cited throughout the section, I should also mention at the outset that everything in this section is strongly inspired by unpublished work and discussions hosted on the Distill Slack!

Review of the circuits program

Summary of the technical approach

Given a neural network that we’d like to understand, the circuits program proceeds as follows.

1. Collect some descriptive data about what every neuron in the network is doing.

E.g. if we’re trying to understand a vision model, we might tag each neuron in the model with a collection of images from the training set that cause that neuron to fire especially strongly, or with a feature visualization where we first feed white noise to the model, then optimize over the noise in the direction of making the target neuron fire strongly. OpenAI has done this for a selection of vision models and made the data publicly available on a site called OpenAI Microscope, with typical results like in Figure 1 below.

We can also imagine doing a similar thing for non-vision models, say by tagging the neurons inside RNNs with text snippets that they activate strongly on; see here for some work in this direction.

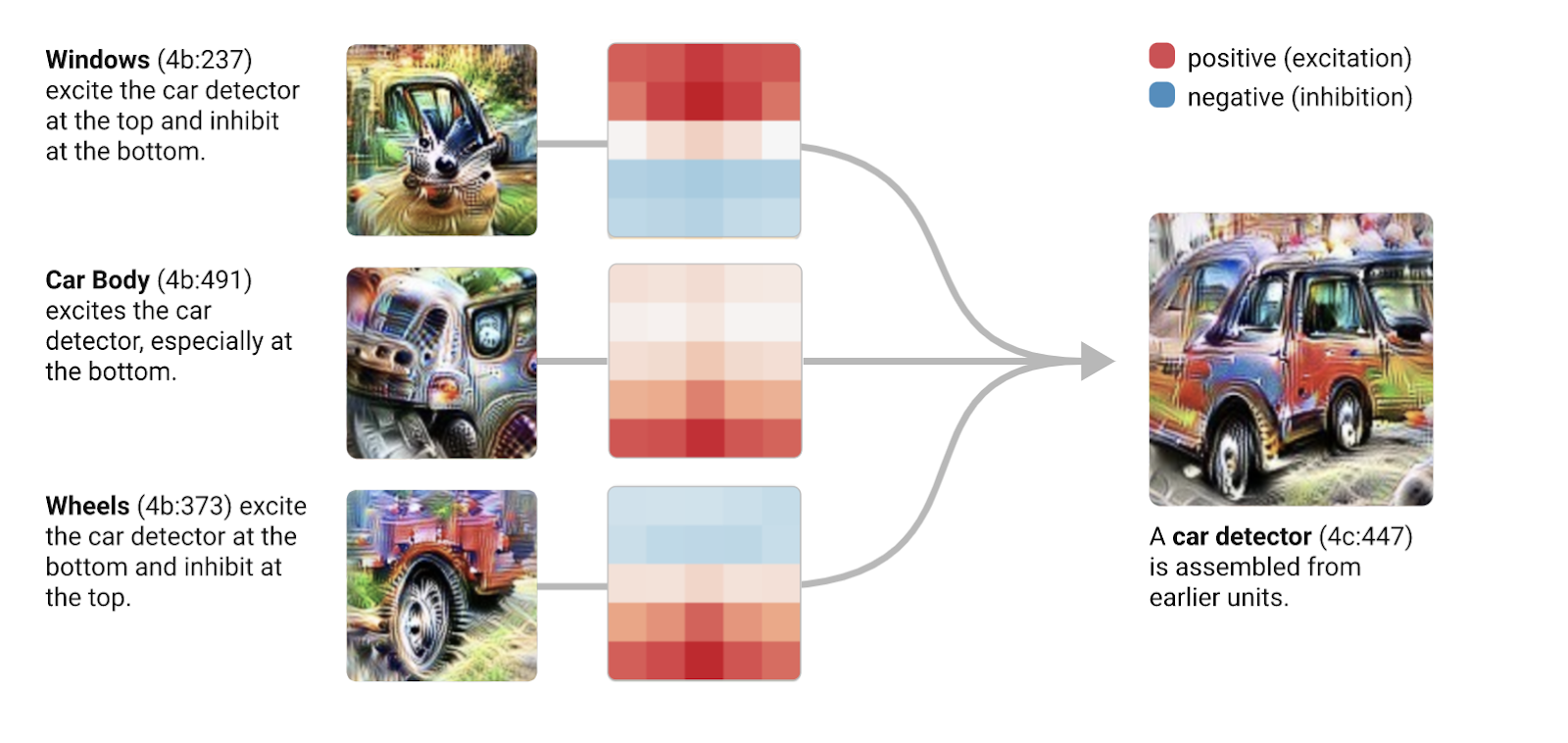

2. Find clusters of neurons (circuits) that are closely connected, and use the data from step 1 to conjecture a causal interpretation for them.

We then look for clusters of neurons that are closely connected, and use the data from step 1 to make a guess for what’s going on inside each cluster. In practice, this step is done manually for now. We might first pick a neuron from step 1 that seems to be doing something interesting (see Figure 1 below), then look at how the neurons in earlier layers conspire to make that thing happen.

The surprising and nontrivial discovery that we make when we try this is that (at least some of the time, in models studied so far) this step turns out to be tractable at all. For example, the “black and white detector” neuron in Figure 1 is connected by large negative weights to neurons in the previous layer that seem to activate on brightly-colored images. This suggests that perhaps the model has learned to approximately implement an algorithm of the form “Black and white = not (color 1 or color 2 or …)”; see Figure 2 below.

3. Test our conjectures.

Finally, we’d like to verify our conjectures, or at least test them further somehow. This is where most of the work that’s gone into the circuits program so far has taken place.

At the single-neuron level, the most obvious way to test a conjecture that a neuron is sensitive to something is to throw many more data points at the neuron than the few that we used to come up with the conjecture. This idea of bouncing inputs off a neural network and seeing how it responds comes from visual neuroscience, but we’re actually much better off in deep learning because we can much more quickly test a huge number of examples. See OpenAI’s paper on curve detector neurons for a study along these lines.

As for circuits, the interpretation of circuits that are one layer deep follows directly from combining the interpretation of its component neurons with the naive interpretation of weights as either incentivizing or dis-incentivizing pairs of neurons from firing together: see Figures 2 and 3 below. For multi-layer circuits, the development of methods to verify them is work in progress, see the forthcoming curve circuits paper from OpenAI.

High-level vision

From results like these, the paper Zoom In: An Introduction to Circuits made three bold conjectures:

  1. Features are the fundamental units of neural networks. They correspond to directions [in the space of neurons]. They can be rigorously studied and understood.

  2. Features are connected by weights, forming circuits. These circuits can also be rigorously studied and understood.

  3. Analogous features and circuits form across models [that are trained on qualitatively similar data].

Challenges to the vision

However, in order to fully realize the vision for all neural networks, the circuits program will have to solve certain challenges (as acknowledged in the “Zoom In” article and elsewhere on the #circuits channel of the Distill Slack).

1. Computational tractability of scaling up the program.

The first is the computational tractability of carrying out the program for large neural networks. The first step described above, of tagging all the neurons in a neural network with dataset samples (as was done in the OpenAI Microscope), seems hard to scale up to large models as it grows with both network and dataset size.

One way around it might be to run a more coarse-grained version of steps 1 and 2 in reverse. We could first look for tightly-coupled groups of neurons (modules) inside a network, then map out how the different modules activate when we feed the network sample inputs (mimicking FMRI experiments in neuroscience), and only then go in and tag the neurons of the most active modules with more fine-grained data.

If we proceed in this way though, we might worry that the analysis could overlook subtle effects coming from the long tail of small weights that connect a module to seemingly less relevant neurons elsewhere in the network. I’ll say more about this below.

2. Assumption of modular structure in the neural network.

The coarse-graining strategy requires that the network have a modular structure. Indeed, modularity (i.e., locality in which part of an AI system computes a particular capability or idea) was a necessary assumption for the entire logic of the circuits program to make sense. If in step 1 all of the neurons had seemed equally responsive to all inputs, we’d never have gotten a handle on which parts of the model to pay attention to. And if in step 2 each neuron had seemed to be randomly connected to all the other ones, we wouldn’t have been able to pick out subgraphs of the network to zoom in on.

Fortunately, we also saw that this isn’t what happens in practice. Instead, trained neural networks seem to have some amount of emergent modularity built in.

And perhaps this isn’t surprising. After all, the real world is objectively well-described by discrete and compositional stuff (on the scales that we care about), and minds that can efficiently model an environment probably have an edge on being able to achieve their goals in said environment. So we might even conjecture that as AI systems get stronger, they’ll naturally come with more disentangled representations, that would make them more amenable to this type of analysis.

That said, there’s still a model-by-model question of whether the AI systems that we deploy will be modular enough for techniques like these to work well in practice.

3. Subjective nature of the results.

Finally, an orthogonal (and perhaps even more fundamental) problem is that the way that we chose to label neurons in this program was subjective. We decided that the neuron in Figure 1 was a black-and-white detector, and those in Figure 3 car component detectors, based on their responses to a finite number of examples. This introduces some observer-dependency into the program, and has led to debates around whether any of these neurons really track what we say they do, or if they’re just responding to correlated patterns instead.

Directions for future work

These challenges suggest some directions for future work. [^10]

Direction #1: Following up on modularity

The circuits program is contingent on neural networks exhibiting some amount of modularity. More generally, AI systems that are more modular may be easier to interpret.

One follow-up direction that I’ve mentioned already would be to characterize the effects of the long tails of small weights that connect a given circuit to neurons outside the circuit. For example, having guessed the emergent algorithm in Figure 2, we might worry that our guess is too naive, with important contributions to the black-and-white detector being stored among other neurons besides the handful of “color detector neurons” shown in Figure 2. Or we might worry that the capability of black-and-white detection isn’t localized to the module shown in Figure 2 (and related ones that we’ve identified), but is also redundantly encoded elsewhere in a way that’s hard for humans to recognize.

One way to get some insight into these things might be to edit the network. To test the first thing, we could delete the “color detectors” and see how badly that degrades the performance of the black-and-white detector at finding black-and-white images, while to test the second one, we could delete the black-and-white circuit from InceptionV1, and see how badly that degrades the performance of InceptionV1 at transfer learning on the task of black-and-white vs. color image classification [^11]. It might be interesting to develop quantitative standards for checks along these lines.

Other directions include to

  • Devise metrics to quantify the amount of modularity present in existing AI systems. See e.g. this recent paper from CHAI.

  • See if we can make neural networks more modular without suffering too much of a performance tradeoff. This is probably related to the previous problem, since finding metrics to add to the loss function would be a zeroth-order way to approach it.

  • Review the inter-network modular structure in state-of-the-art AI systems that go beyond single NNs. Many state-of-the-art systems today combine multiple neural networks with other moving parts. I’d find it useful to have a high-level survey of some of these architectures, with an eye towards how interpretable they seem to be.

Direction #2: Following up on subjectivity

A major challenge for the circuits program is that results obtained in it seem to be inherently subjective.

To think about which parts of the program can be made precise, it’s useful to step back and remind ourselves of what neural networks are doing at a very elementary level.

In a supervised learning problem, a neural network learns to map a vector of size dim(input layer) to one of size dim(output layer) = #_{classes}, where every neuron in the output layer is assigned a label corresponding to one of the classes. Given a new input vector, we can then classify it by plugging it into the model, seeing which output neuron has the largest activation, and looking up the label assigned to that neuron.

Without that label, which was put there by a human engineer, our attempts at interpreting neurons in the output layer would be in the same logical state as attempts to interpret any of the neurons in the hidden layers. We might notice that a neuron in the last layer of a network trained on MNIST frequently activates on things that look like the digit “0”, but the match wouldn’t be 100% exact, and we wouldn’t have an answer key to check our hunch against.

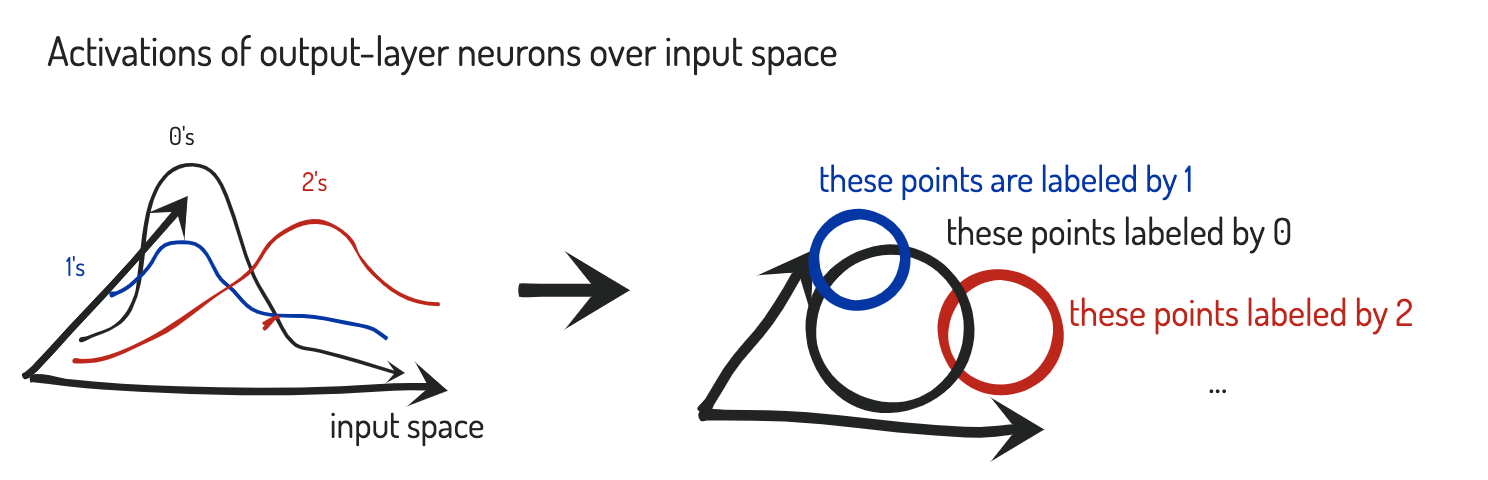

More concisely, each neuron in the final layer of a neural network defines a function

F(input vector) = activation of that neuron (*)

over the space of raw data, and a supervised network assigns to each new input the label corresponding to the largest of these functions.

The “features” step in circuits simply generalizes this to all neurons. Namely, every neuron in a neural network defines a function like (*) over the space of raw data [^12], and transparency methods aspire to understand (where) these functions (take on especially large values). (Note that this perspective works equally well for visual and non-visual models.)

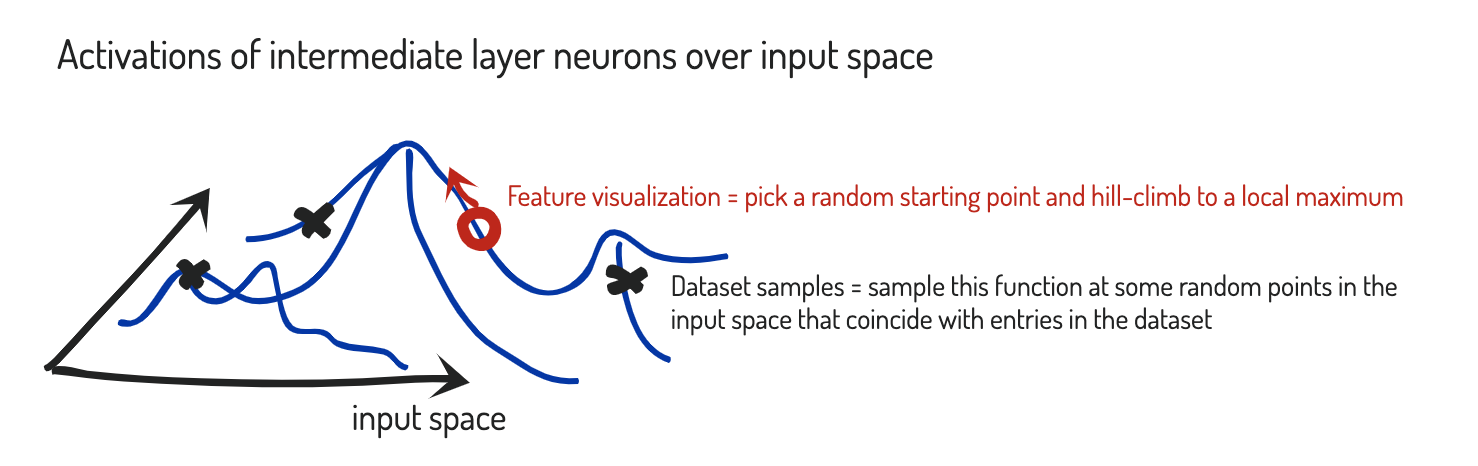

In practice, these functions are hard to compute exactly, so we sample from them instead. E.g. feature visualizations involve picking a random starting point and hill-climbing to a local maximum of one of these functions, while dataset samples involve sampling from such functions at random points that happen to be a part of the dataset, and recording when the result happens to exceed some threshold value.

Given that what we really have access to are (samples from) functions like (*), it’s clear that whether or not a feature aligns with a human-interpretable concept can’t be made precise without added information about how the underlying raw data is related to a Platonic space of human ideas! In particular, we can get quantitative results by comparing a neuron’s performance on a dataset with how a human chooses to manually label that same dataset (see the section “Human Comparison” in Curve Detectors), but we can’t avoid subjectivity.

We can, however, try to get rigorous and generalizable results about the functions learned by hidden-layer neurons in the abstract. E.g.

  • Under what circumstances do (linear combinations of) neurons actually model aspects of the data distribution that they’re trained on, as opposed to just encoding the decision boundaries between classes? Something like this seems necessary for feature visualization to work.

  • How are features related to generalization?

  • Do neurons that seem to represent “meaningful” things have typical shapes over the high-dimensional space of raw data? (This is as much a question about how the underlying data is structured—an interesting question in and of itself! -- as it is about how that space is modeled by machine learning algorithms.)

And so on. Concrete directions that we could potentially follow up on include to

  • Train neural networks on low-dimensional data distributions that we can specify analytically, and try to address some of these questions there. For example, following this paper, we could imagine solving a very small neural network trained on samples drawn from two 2d Gaussian blobs in hopes of learning things that would generalize to larger networks [^13][^14].

  • Compare circuits work to existing work on loss landscapes in deep learning. Another strategy might be to go through the literature of existing results from other perspectives and look for synergies with the circuits approach. As a semi-random example, the linked paper in the previous bullet-point suggests that some directions in the loss landscape are more important than others; it might be interesting to understand if such directions play an interesting role from the circuits POV.

It’s worth noting that this problem of subjectivity may become more tractable as our AI systems get stronger. In particular, if we knew that a future neural network-like system was capable of exactly representing symbolic operations such as addition with perfect accuracy, we could perhaps use insight into how it represents those operations to get a foothold into seeing how it encodes everything else. But today’s models probably can’t exactly represent such things.

Direction #3: Apply the circuits program to other architectures

I mentioned earlier that AI today resembles an engineering science, where the discovery of a useful artifact anticipates the development of a scientific field. One way that today’s AI systems differ from past examples of this paradigm though is that they aren’t just one artifact, but rather a collection of different architecture types that exhibit a wide range of different behaviors after training. A priori, it need not be the case that these different architectures will be explained by the same underlying theories, although it seems plausible that there will be high-level similarities between how they work. (Indeed, it need not even be the case that a given architecture type exhibits the same qualitative behavior as itself at a different scale, as Figure 3.10 in the GPT-3 paper weakly suggests!)

In this respect, today’s AI technologies are perhaps more like a collection of (virtual) materials that exhibit interesting behaviors, and transparency “the empirical study of intelligent materials”.

It follows that a shovel-ready set of interesting projects might be to apply transparency tools to other architectures besides the medium-sized CNNs that have been the focus of study so far. Language models, RL models (though see the recent Understanding RL vision) and the many different types of unsupervised learning models [^15] all seem like fair game. Since it’s currently unclear how any of these architectures work, all of these projects would seem to have some chance of being genuinely interesting [^16].

These seem like they could make good “starter projects” for people to get involved with transparency research. See the #circuits channel on the Distill Slack for concrete project ideas along these lines.

Direction #4: Develop an end-to-end picture for AGI safety

Finally, to follow up on the discussion around Motivation #3, it might be interesting to flesh out how exact transparency could be combined with existing ideas for outer alignment to get an end-to-end story for aligning AGI.

To summarize, transparency seems like not only a well-motivated research direction but one with plenty to do, and I’m excited to see the progress in this field in the coming years!

Thanks to Owen Cotton-Barratt, Max Daniel, Daniel Eth, Owain Evans, Lukas Finnveden, Hamish Hobbs and Ben Snodin for comments on an earlier draft of this post.


All of these figures come from work by the OpenAI Clarity team.

Figure 1: An example of descriptive data used to tag channel mixed3a:222 of InceptionV1, implementing step 1 of the circuits program for InceptionV1. The top row shows feature visualizations that maximize the mean activation of all the neurons in channel mixed3a:222 (left) and of the centermost neuron in the channel (right), while the bottom row shows examples of ImageNet images that the centermost neuron fires strongly on. This data suggests that the channel detects input images that are black and white. Figure taken from the OpenAI Microscope.

Figure 2: The “black and white detector” neuron of Figure 1 is connected by large negative weights to neurons in the previous layer that seem to like to fire on brightly-colored images. Figure taken from An Overview of Early Vision in InceptionV1.

Figure 3: An example of a circuit in the later layers of a neural network, where the neurons involved seem to align with more sophisticated meanings. Namely, a neuron that seems to activate on images of wheels and a neuron that seems to activate on images of windows incentivize the downstream activation of a neuron that seems to activate on images of cars. Figure taken from Zoom In: An Introduction to Circuits.


[^0] Transparency is part of a larger field called interpretability, which also includes (post-hoc) explainability: the problem of generating plausible, good enough explanations for what an AI system might be doing after the fact. The latter is useful for getting people to trust and adopt current AI systems but not so useful from a safety point of view.

[^1] In practice, we would probably never want the implementation of a function to be the one generated by the UAT, which turns infinitely large neural networks into lookup tables for functions. So I think that the UAT is even less useful for forecasting than the handwavy way that it’s often referred to in this community.

[^2] One way to visualize this is that each choice of dataset first gives rise to a loss landscape over the search space of a model. The choice of initial conditions then determines where on the landscape we put a ball, that we (approximately) allow to roll to a local minimum.

[^3] Heuristics for this view include Rich Sutton’s bitter lesson and the success of scaling laws for AI models so far, although those laws apply to a specific set of capabilities.

[^4] A heuristic for this view is that the best-performing narrow models aimed at mimicking specific developmental capabilities often involve coupling neural networks to rather ad-hoc structures.

[^5] A handwavy argument in favor of AGI perhaps being bottlenecked by having a sufficiently Earth-like training environment in the future is that systems that evolved on Earth such as ourselves had selection pressure to be especially good at interacting with real-world datasets, which are also the only kind of dataset that we actually care about.

[^6] Alternatively, you could imagine that we’re the aliens in a simulation being run by some much slower civilization, and ask how they might re-instantiate, communicate with and convince us to do economically useful things for them! See That Alien Message.

[^7] For example, we could imagine isolating the neocortex from all of the midbrain stuff in a simulated human, if one believes naive neuroscience theories that say that the neocortex is the seat of human intelligence.

[^8] Unless we someday understand AI systems well enough to map (model initialization, training set) pairs to an exact understanding of the cognition of the trained model. But this would basically be like solving transparency.

[^9] Unless we insist that our future AGI systems have small enough input/​output spaces to make verification work. I consider such systems to be non-agentic and will address this in the next section.

[^10] These are just a small subset of open questions in and around the circuits program that seemed especially relevant to issues raised in Part 1. For longer lists of research questions (including some shovel-ready project ideas), see the section “Questions for future research” in Understanding RL vision and the #circuits channel on the Distill slack.

[^11] This idea comes from a post on the Distill slack by Chris Olah who did a similar experiment for curve detector neurons there.

[^12] As well as over the latent space defined by any earlier layer in the network.

[^13] Although we shouldn’t expect such a simple laboratory to have something to say about all of the interesting questions. In particular, by approximating a data distribution with a Gaussian we coarse-grain over all of its internal structure, so we shouldn’t expect human-interpretable features to be assigned to any of the hidden-layer neurons in this experiment.

[^14] Some work on this is in progress!

[^15] Note that many deep unsupervised learning algorithms are just vanilla NNs trained on unorthodox datasets when compared to the supervised learning case. This might make them seem less interesting to interpret if our goal is to discover general principles of some architecture class. In some ways though, it makes them more interesting: e.g. perhaps interpreting them could give us more insight into the earlier discussion that it’s not a model choice in isolation, but rather the interplay of model choice + environment that we should think about when we think about timelines and so on. Also, the latent space in some of these models might open up new avenues for transparency work.

[^16] A challenge for this line of projects is that we wouldn’t have analogs of the OpenAI Microscope to tell us which neurons to study. One way around this might be to work with small enough models that we could construct the analog of the OpenAI Microscope ourselves, as discussed around Direction #2. Another might be to coarse-grain over many neurons and apply transparency tools to entire layers or modules of a network at once (see e.g. the post Interpreting GPT), although then we’d run the risk of averaging out interesting information, and have to deal with the issues from Direction #1.
