This is the second entry in the “Which Circuit is it?” series. We will explore possible notions of faithfulness when explanations are treated as black boxes. This project is done in collaboration with Groundless.
Last time, we introduced the non-identifiability of explanations. Succinctly, the problem is that many different (sub)circuits seem to equally explain the same (full-circuit) model. So, how do we choose among them?
This post is about what happens when we try to distinguish subcircuits using only their inputs and outputs. We call this observational faithfulness. The short version: it’s not enough, even when we push well beyond the training distribution.
The full model is our target explanation, and the subcircuits are our candidate proxy explanations.
A natural starting point is to ask what “equally explain” actually means here. At a minimum, we would like our subcircuits to accurately predict the full model’s behavior. If we treat the subcircuit and the full model as black boxes, would they agree on the outputs across the entire input range? This is what we refer to as observational faithfulness.
More precisely, a subcircuit is observationally faithful to the full model over a domain D if, for every input in D, they produce the same output. The question is whether this is strong enough to pick the right explanation.
Let’s get our hands dirty and see what this looks like in a toy model.
Our Toy Model Setup
Let’s make this concrete with a toy model we’ll keep returning to throughout this series.
The core idea
We train various small multilayer perceptrons (MLPs) to compute Boolean logic gates (XOR, AND, OR, IMP). We know precisely what computation each output should perform. Access to the ground-truth allows us to directly answer the question: Can we actually recover the right subcircuit for each gate?
Architecture

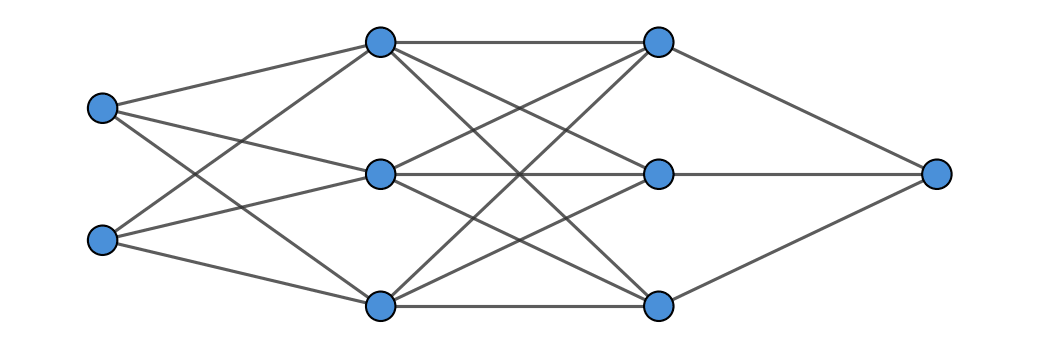

A simple and shallow MLP with configurable width and depth:
Input: 2 binary values, sometimes with added Gaussian noise.
Hidden layers: 2 layers of 2-4 neurons each. We experiment with activation functions like Tanh, ReLU, and LeakyReLU.
Output: One logit per logic gate.
Training Details
The MLP uses Kaiming Normal initialization, matched to the activation function.
The model uses Binary Cross-Entropy with Logits (BCE) applied independently to each output head.
What makes this interesting?
The setup is small enough to exhaustively enumerate all possible subcircuits, each of which specifies which neurons to keep and which edges to prune. For a 3-wide, 2-deep network, that’s a tractable search space nowadays. We can check every candidate against the ground truth rather than relying on a heuristic to find the right one.
Why does this matter?
It’s a sanity check for interpretability methods. If we can’t reliably identify the circuit implementing XOR in a tiny MLP where we literally defined the answer, we should be worried about circuit discovery claims in frontier models. This is the easiest possible setting. Full enumeration, known ground truth, tractable search space. If a technique fails even once here, it’s already broken. It doesn’t need to fail on a frontier model to be untrustworthy.
Even a single one toy example can reveal real limitations.
We start by training a single network to learn XOR.
Starting to Experiment

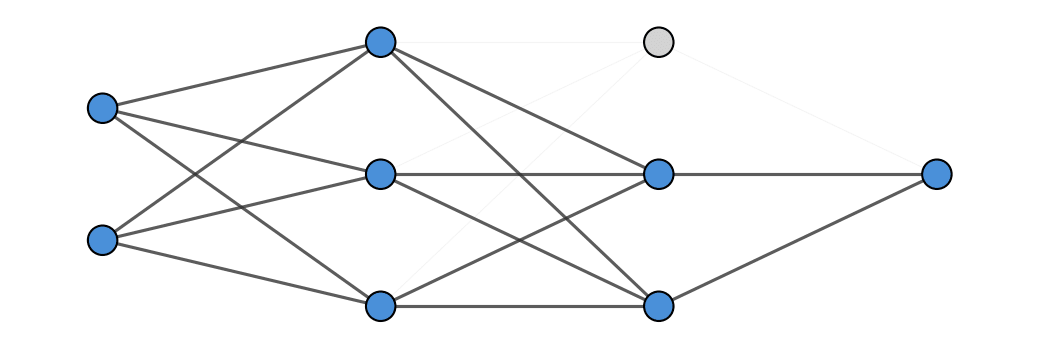

Our shallow MLP has two hidden layers, each with two neurons, using the tanh activation function.

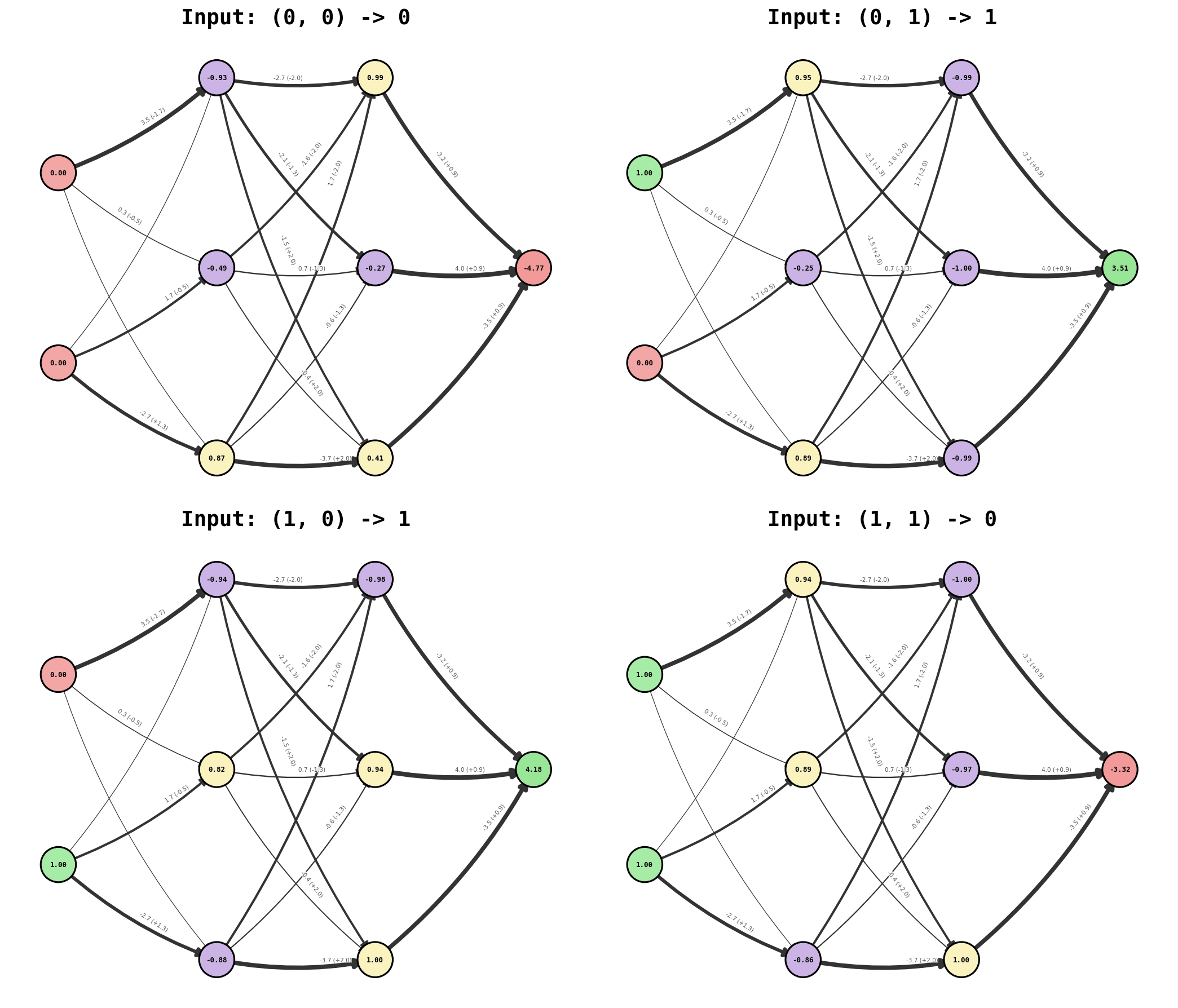

First, we check that our network indeed learned the Boolean gate. There are only four ideal inputs, where each input neuron is either zero or one.
Second, we check whether any subcircuit achieves perfect accuracy when isolated. We organize the search by node masks/pattern: which neurons are kept. Each node mask can have multiple edge masks that specify which connections between the kept neurons are active. Together, a node mask and an edge mask define a single subcircuit.

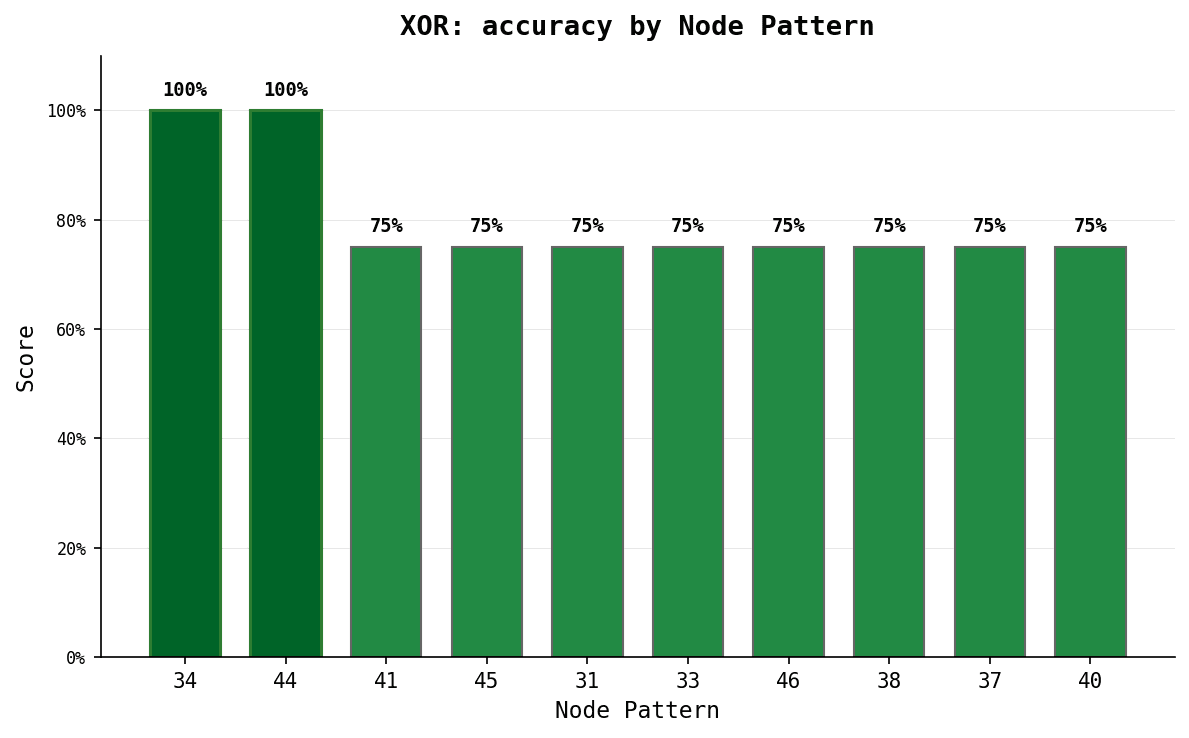

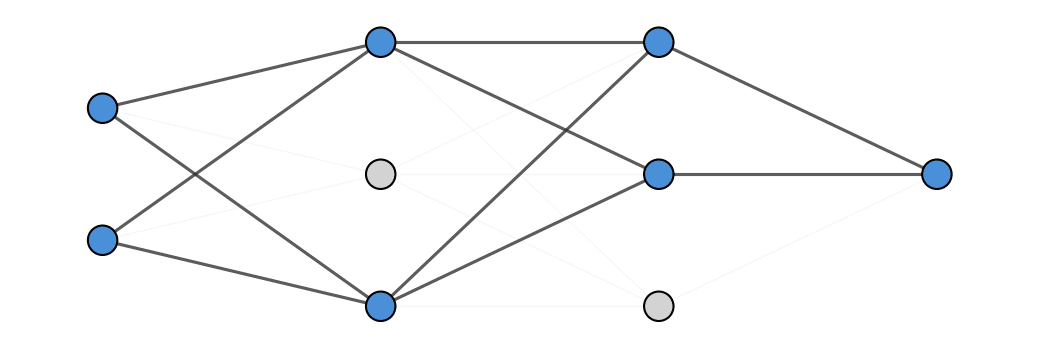

We found a few node masks with ‘perfect accuracy’:

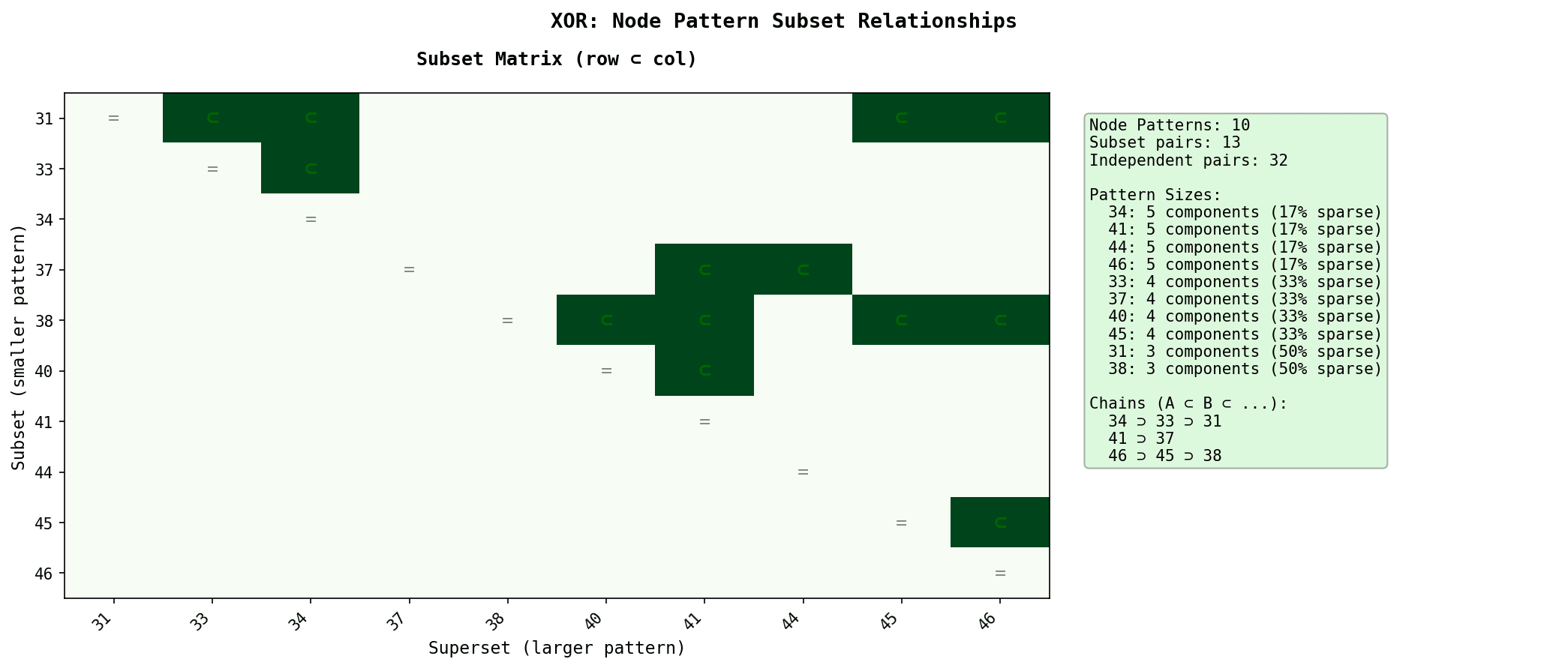

Many of them are incomparable under inclusion (not a subcircuit of the other):

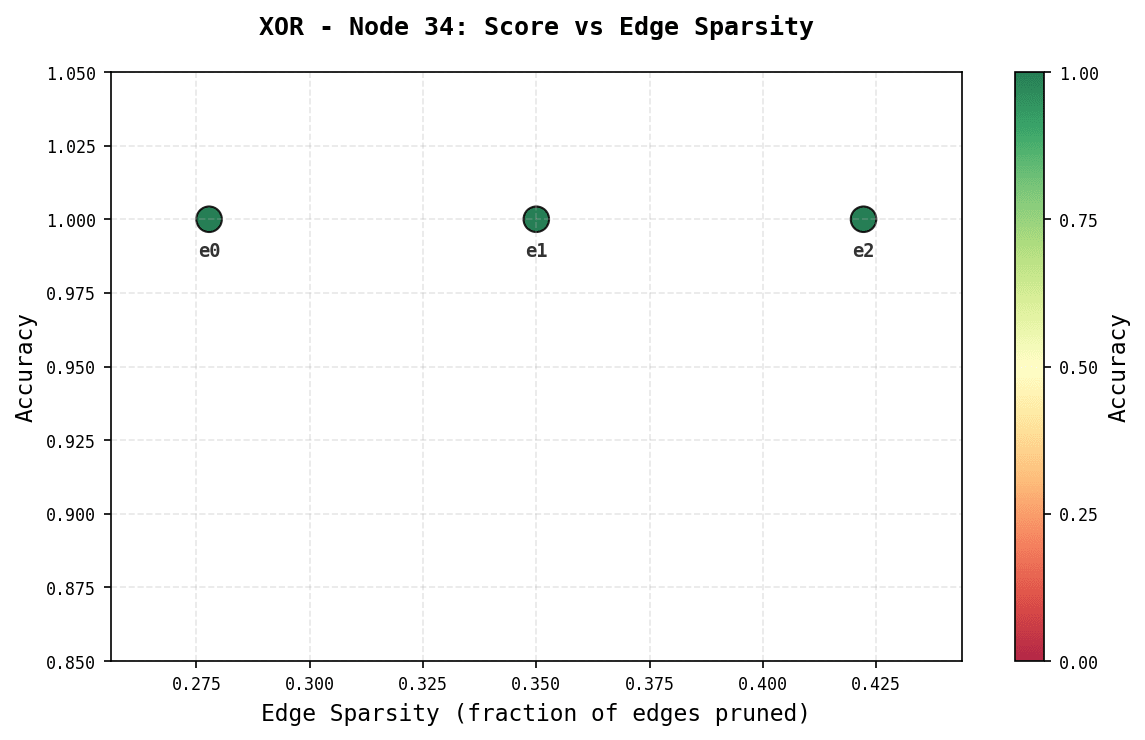

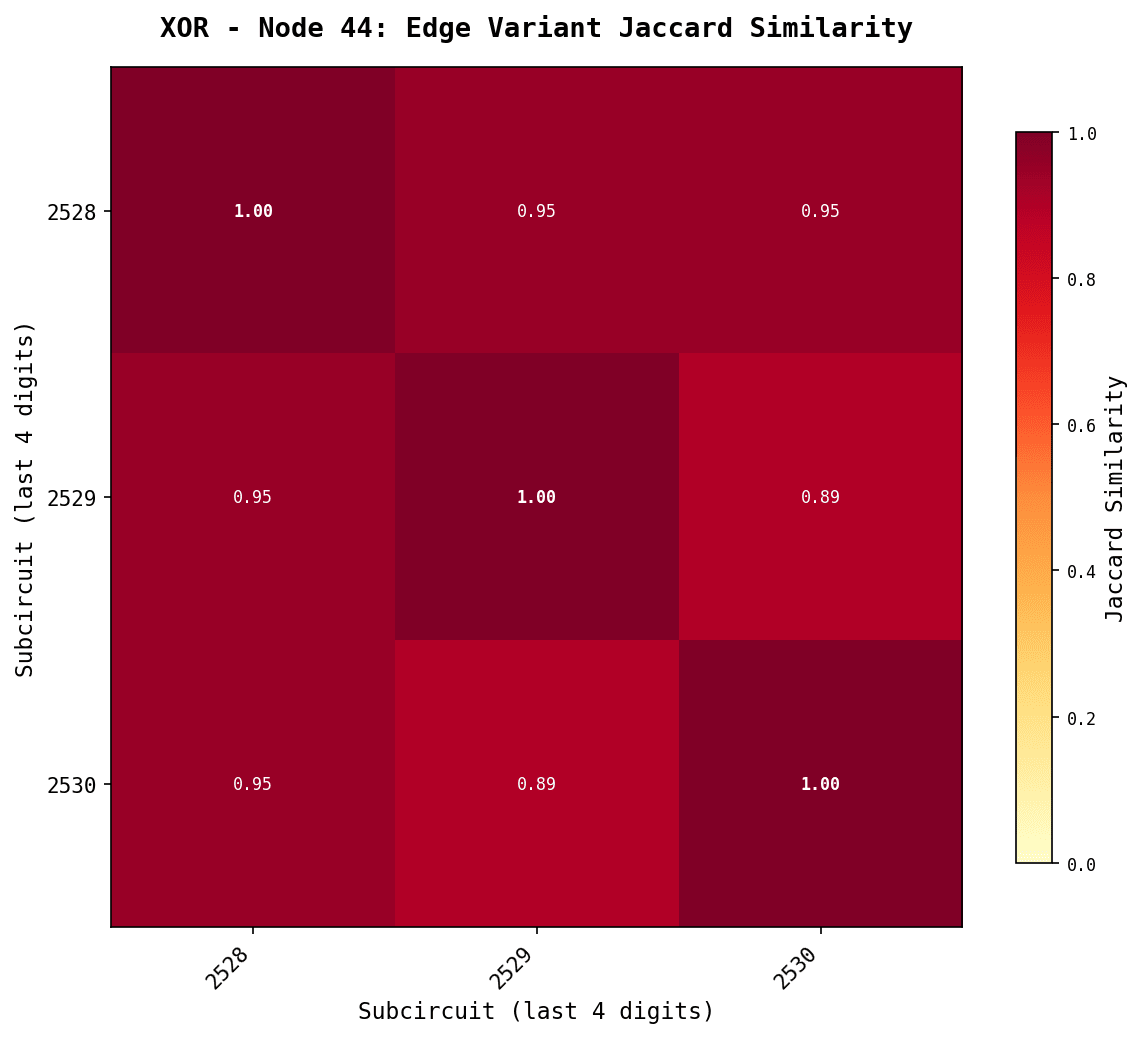

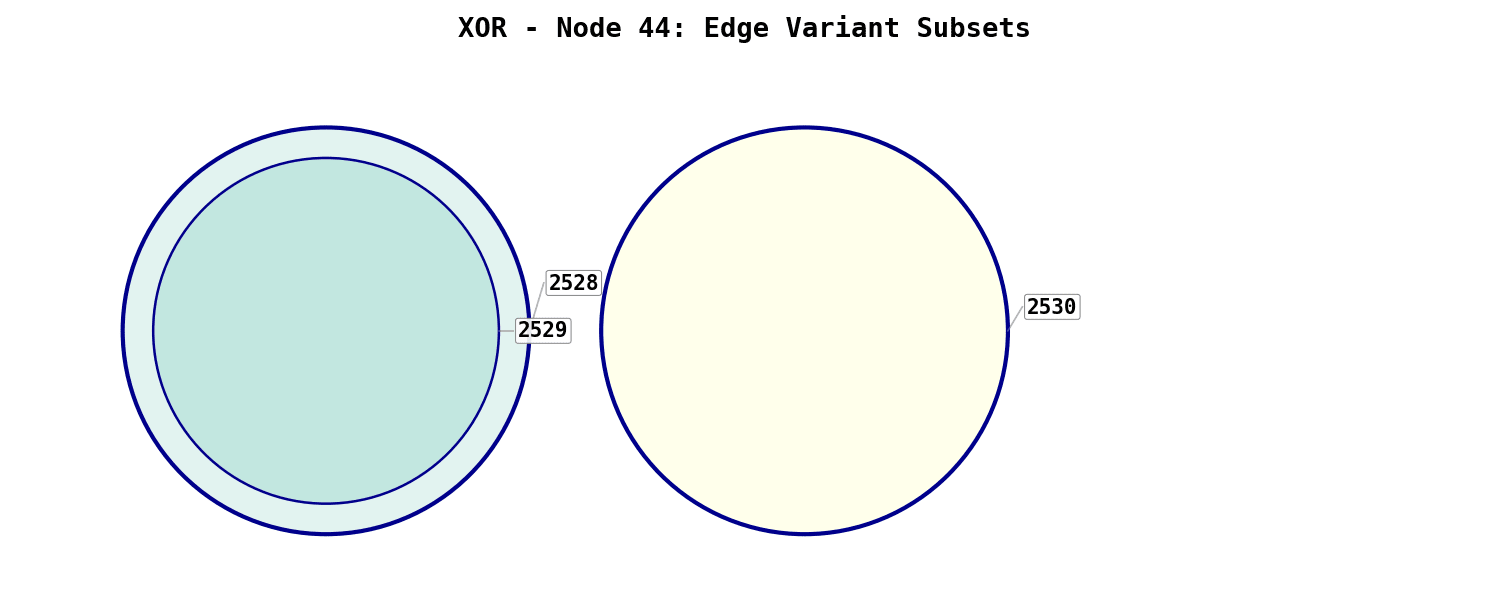

Additionally, each node mask also has a few edge mask variations that also achieve perfect accuracy:
Could we use complexity as a tiebreaker? Keep the subcircuit with the fewest edges that still achieves perfect accuracy?
We could do that per-node mask to some extent. But it is not fully straightforward because many ‘perfect accuracy’ subcircuit variants exist even for a single node mask.

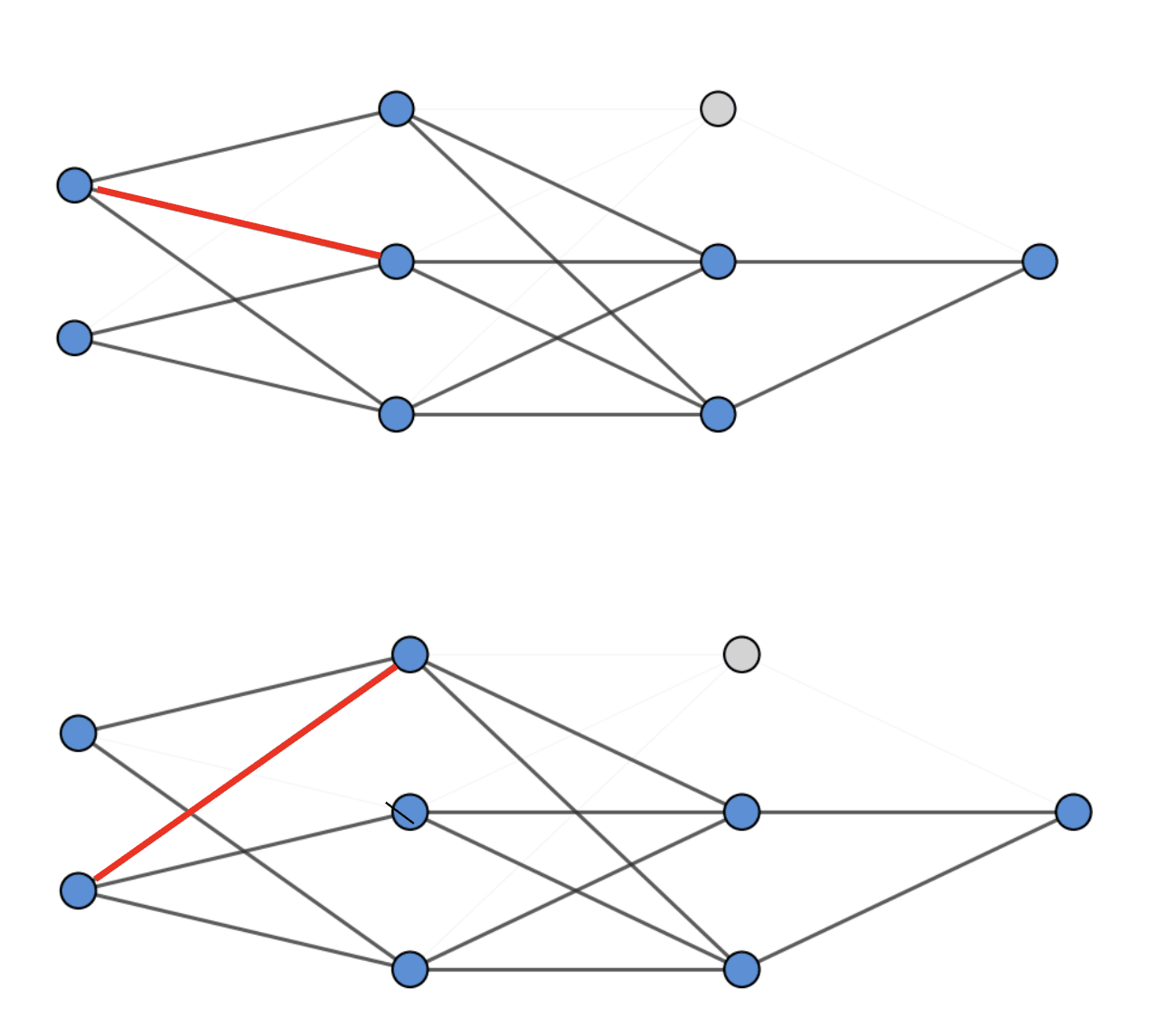

These two have the same ‘perfect’ accuracy and the same number of edges, but they do not have the same graph:
Across node masks with different topologies, there is less of an obvious way to do so.
So, what now? We have multiple subcircuits that all produce the correct answer for every canonical input. Before reaching for more complex tools, it’s worth asking: are we losing information in how we compare them? Is the comparison itself too coarse? Bit-level agreement might be hiding meaningful differences.
Note on Edge Variants
To simplify our initial analysis, we will identify subcircuits by their node masks and, among the many possible edge variants for each mask, consider only the most complete one. Once we identify a node mask that clearly outperforms the others, we will then examine its edge variants in detail.
The Lossiness of Comparison
So far, we’ve been checking bit-level agreement: does the subcircuit output the same 0 or 1 as the full model? But the boolean output is a sigmoid over the logits. The sigmoid hides the fact that two subcircuits can agree with the full model at the bit level while differing substantially in their logit values.

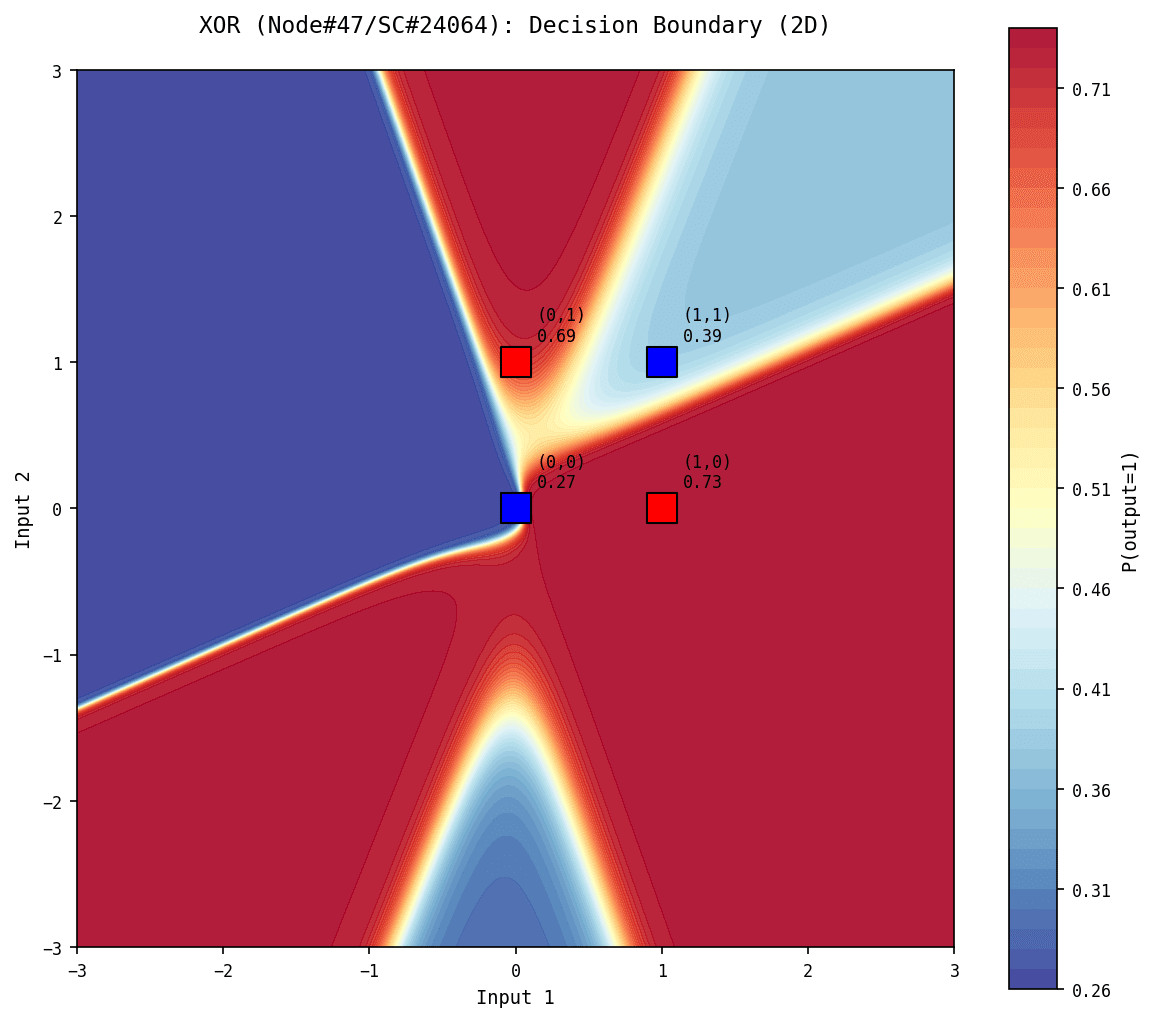

The decision boundary for our network is at zero. Any negative logit value will be mapped to a logic gate output of 0, and any positive logit value will be mapped to a logic gate output of 1. The theoretical ideal decision boundary looks like:
The plot shows a step function at zero: negative logits map to 0, positive logits map to 1, with a sharp vertical transition at the decision boundary.
Should we require subcircuits to match the logits? An exact logit match might be too much to ask. The full model does not perfectly match the ideal, but it does get close:
Logit proximity, though, could give us a meaningful way to compare candidates. But comparing logits is meaningful only when we evaluate beyond the four canonical inputs.
Before we continue, it’s worth seeing how this type of analysis applies beyond toy models.
Interlude: Greedy Decoding in LLMs
We often characterize LLMs’ behavior based on their greedily decoded generation. An LLM doesn’t directly output text. It outputs a probability distribution over the entire token vocabulary at each step.
Paris’ is the most probable next token (top-1 token). Greedy decoding selects the argmax at each step.

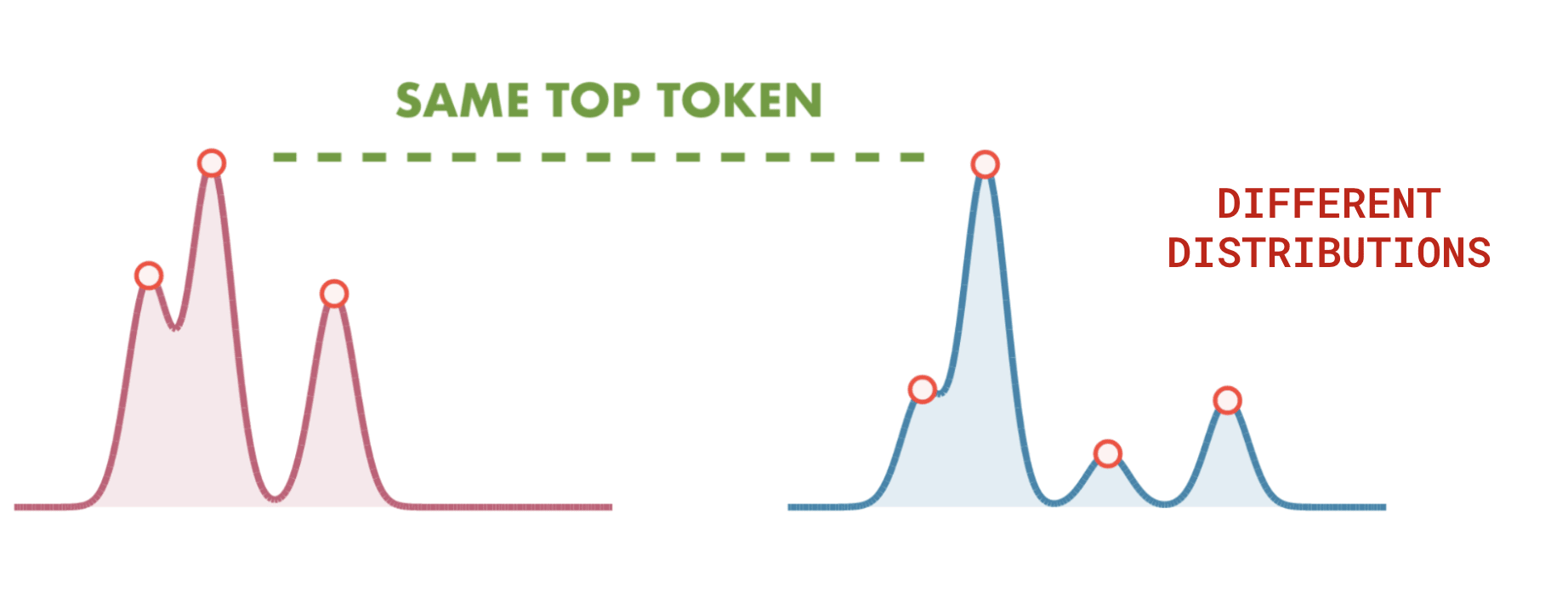

Greedy decoding picks the highest-probability token at each step. The resulting sequence is what we often use to characterize the LLM’s behavior. But the model gave us a full distribution at every step, and we reduced each one to a single token. Two models can agree on the argmax at every position while having completely different distributions underneath.
reedy decoding compresses a model’s full distribution into a single token. That’s a lossy comparison.
This mirrors what we saw in the toy model. Bit-level accuracy hid logit differences behind a sigmoid. Greedy decoding hides distributional differences behind an argmax.
The takeaway: comparison requires compression, which is often lossy.
We don’t need a perfect comparison. We just need one that preserves the differences we care about, the ones our interpretive claim depends on, so we can justify discarding the rest.
Robustness to Noise
If we’re going to expand beyond the canonical inputs, the natural first step is their immediate neighborhood. We also want circuits whose interpretations are stable under small perturbations. A circuit explanation that breaks under slight noise is not much of an explanation.

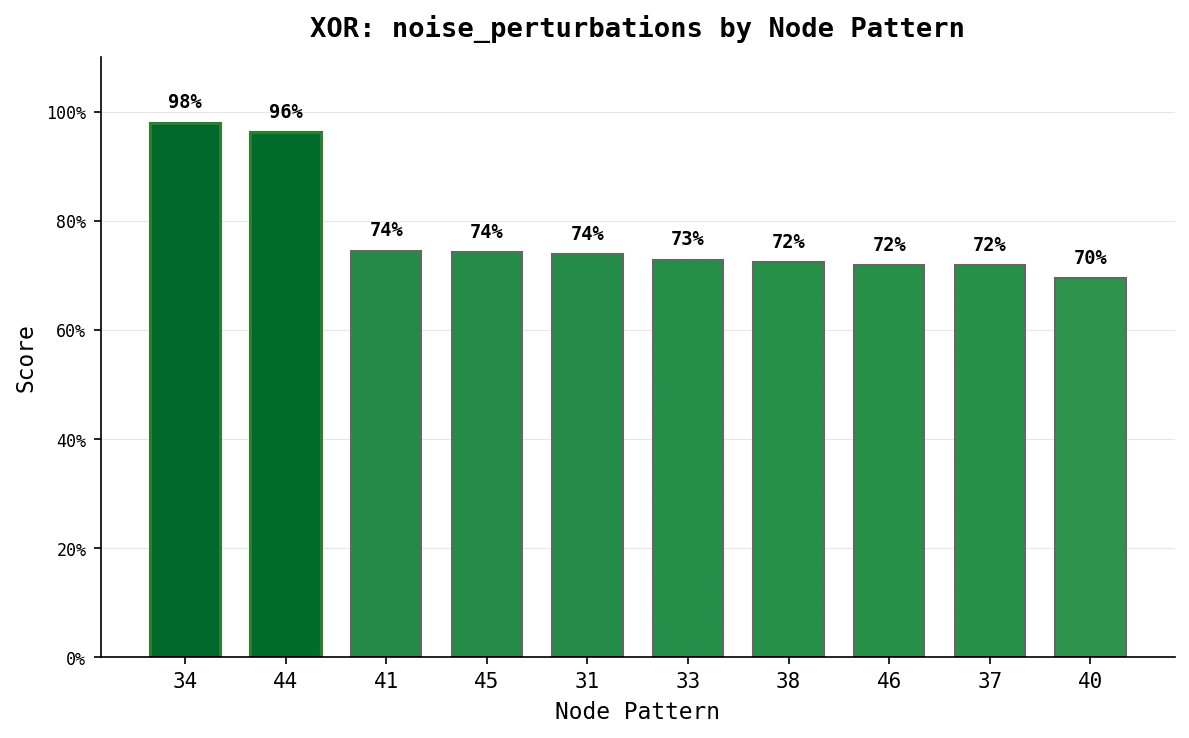

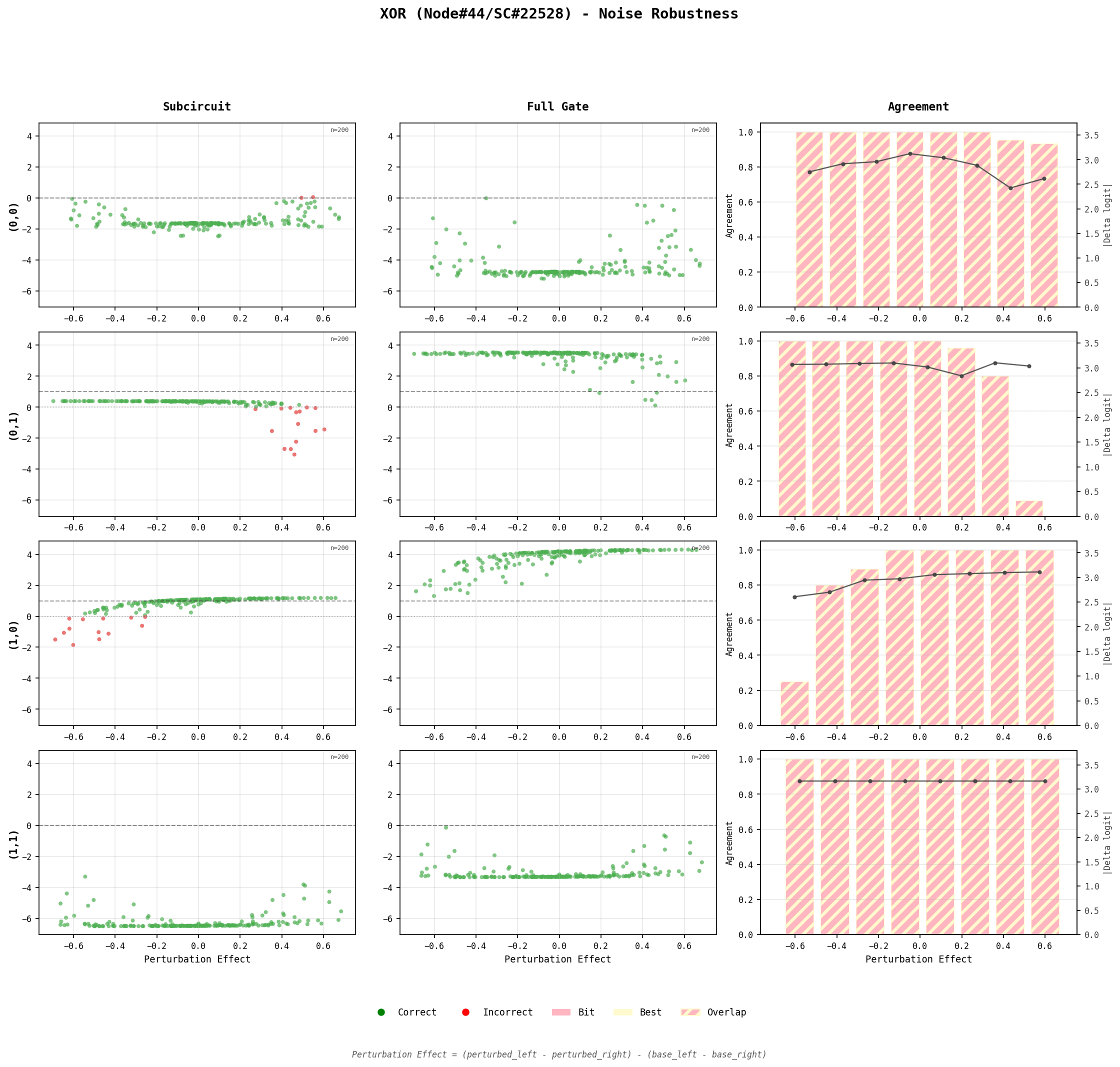

We see that under noise, all subcircuits start disagreeing with the full model:
However, this is not very helpful: our top subcircuits are not meaningfully differentiated. Let’s zoom in on the results for those two subcircuits:
We can see that the logit values differ between subcircuits and the full model, but they generally track the shape. The top figure for node mask #34 does not appear to track the full model as closely for the (0,0) input as #44 does, but when we crunch the bit-agreement numbers, #34 beats #44.
We need another comparison, something that breaks this tie and reveals which subcircuit actually tracks the full model more closely.
Agreeing Locally, Diverging Globally
Robustness considers the immediate neighborhood around the canonical inputs, but that’s not enough. We want to push further: how far beyond the training data should a subcircuit agree with the full model? A faithful subcircuit should extrapolate well beyond the canonical inputs, not just survive small perturbations in their vicinity. The larger the region of agreement, the stronger the evidence that the subcircuit is actually capturing the same computation rather than merely memorizing the same outputs.
Interlude: Smaller Domains ➡️ Weaker Constraints

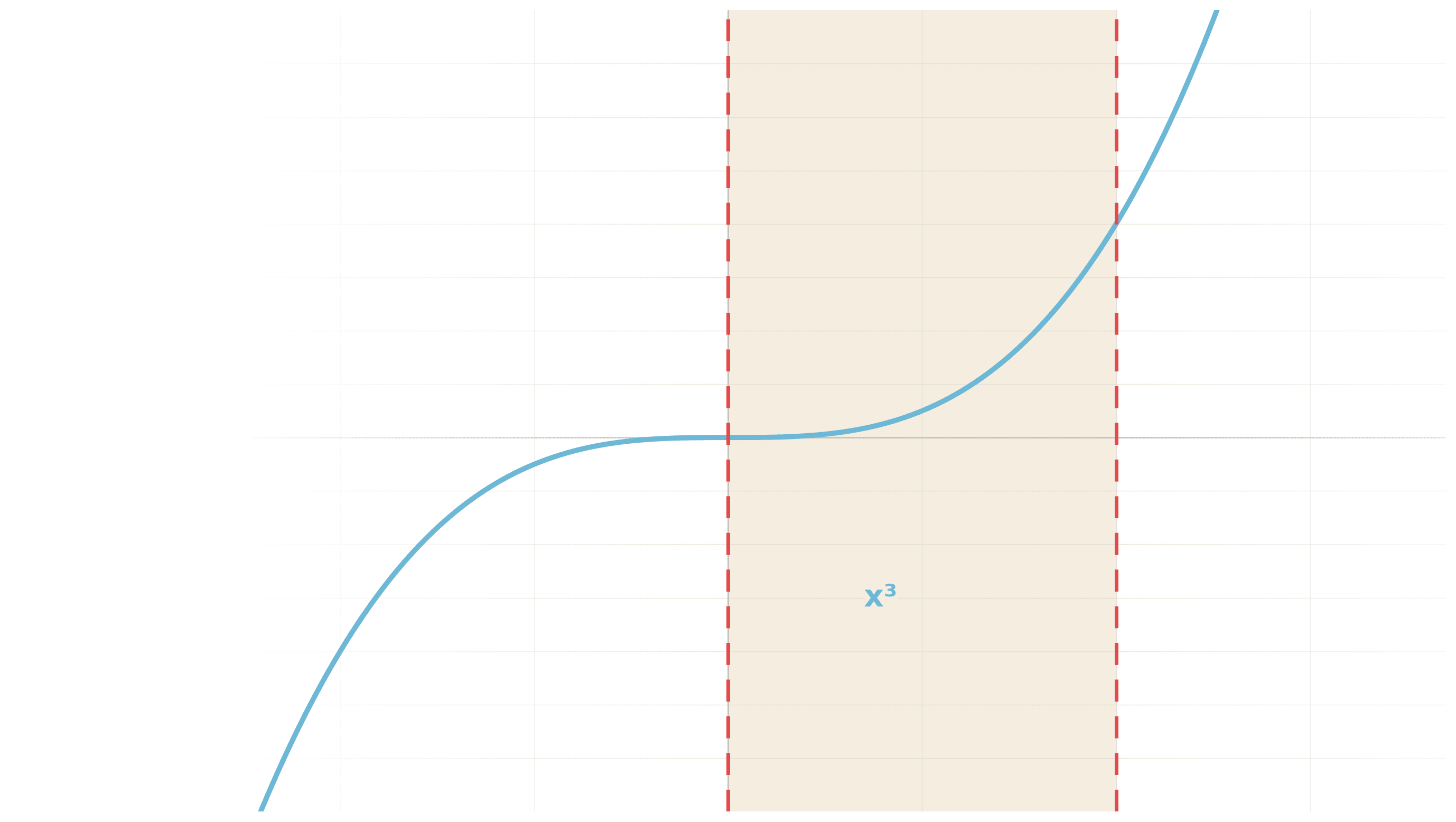

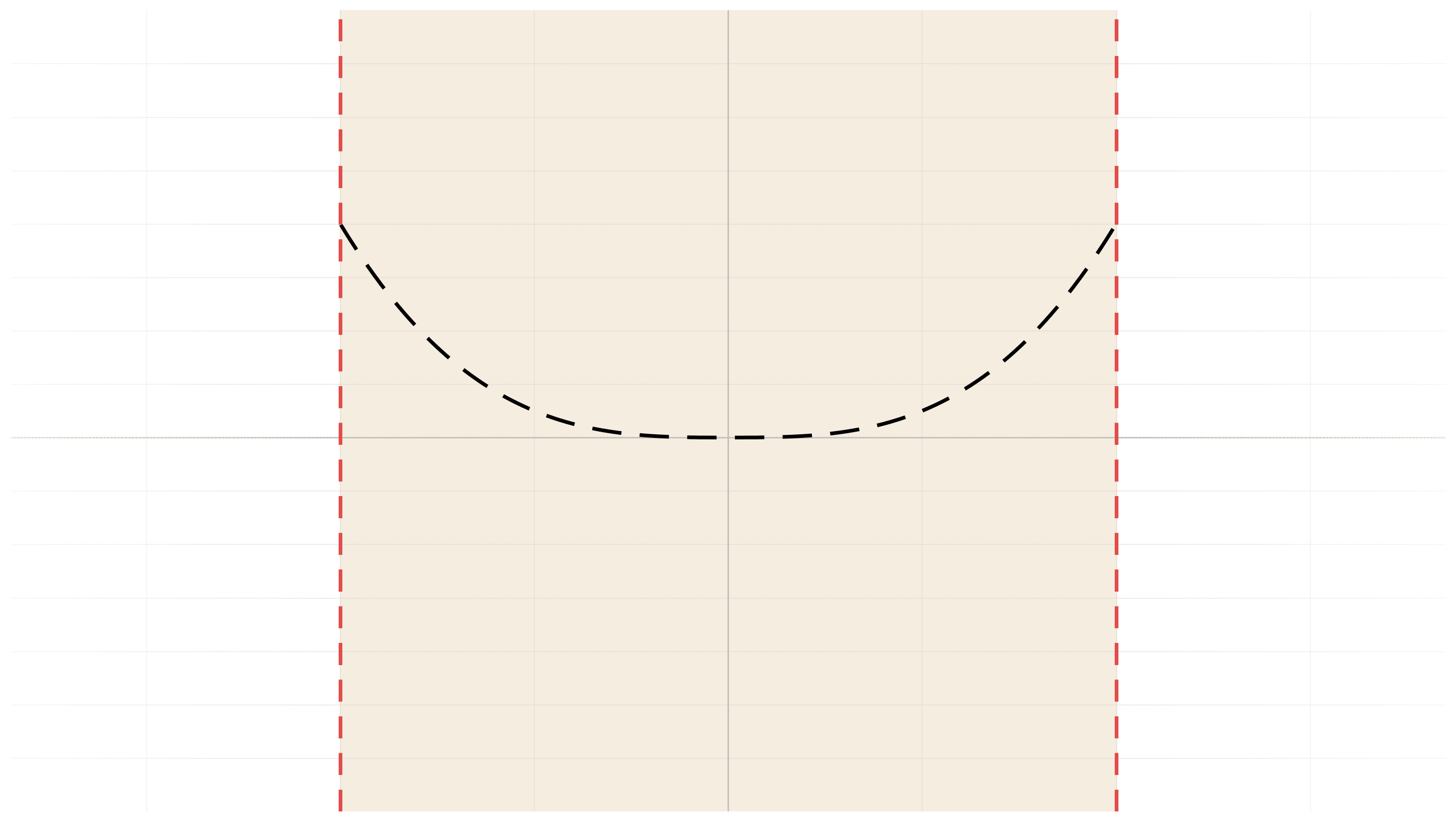

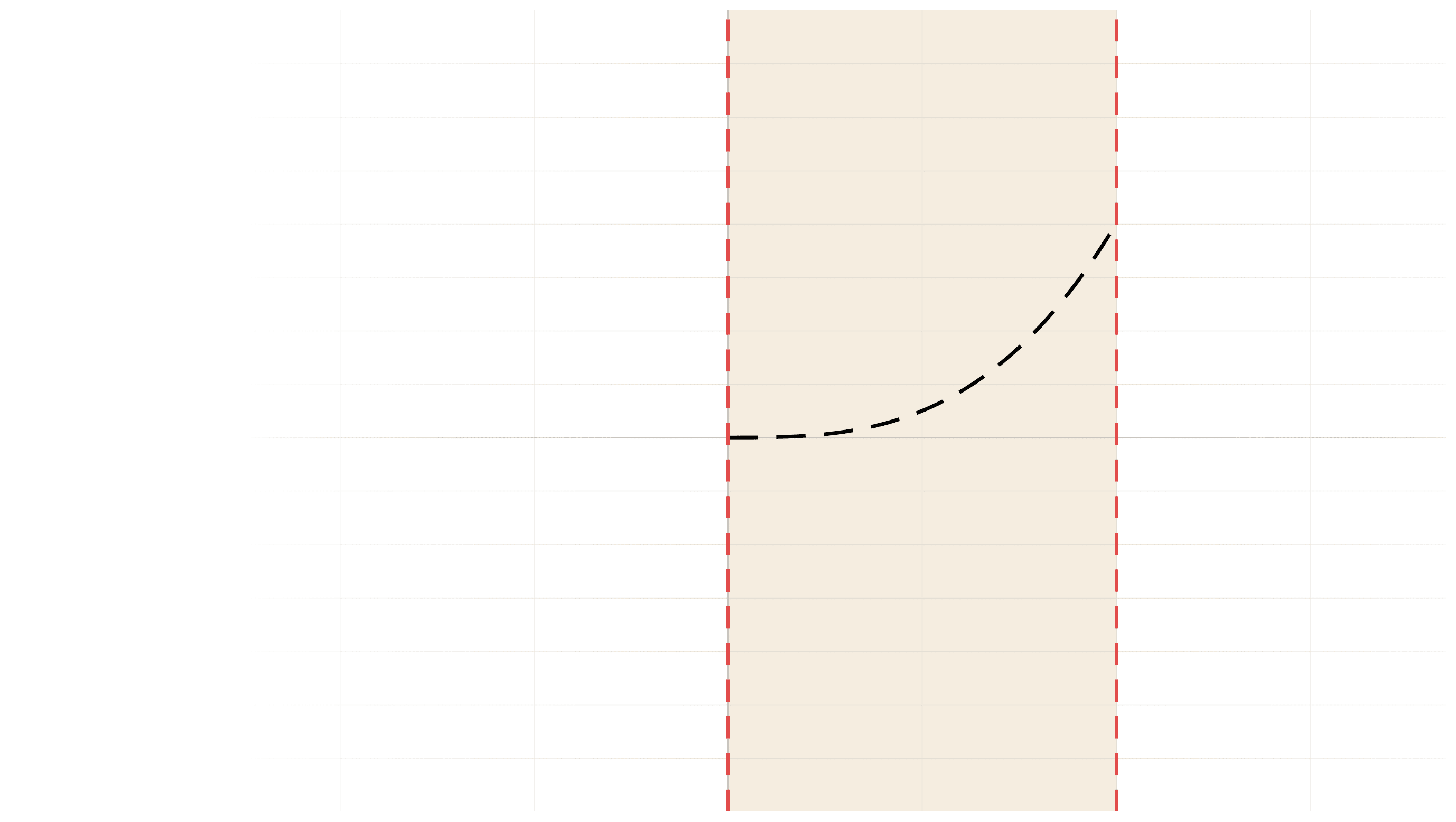

Let’s say we would like to fit a function for the curve within the shaded region.
For that region, we could consider as a candidate, it has ‘perfect accuracy’.

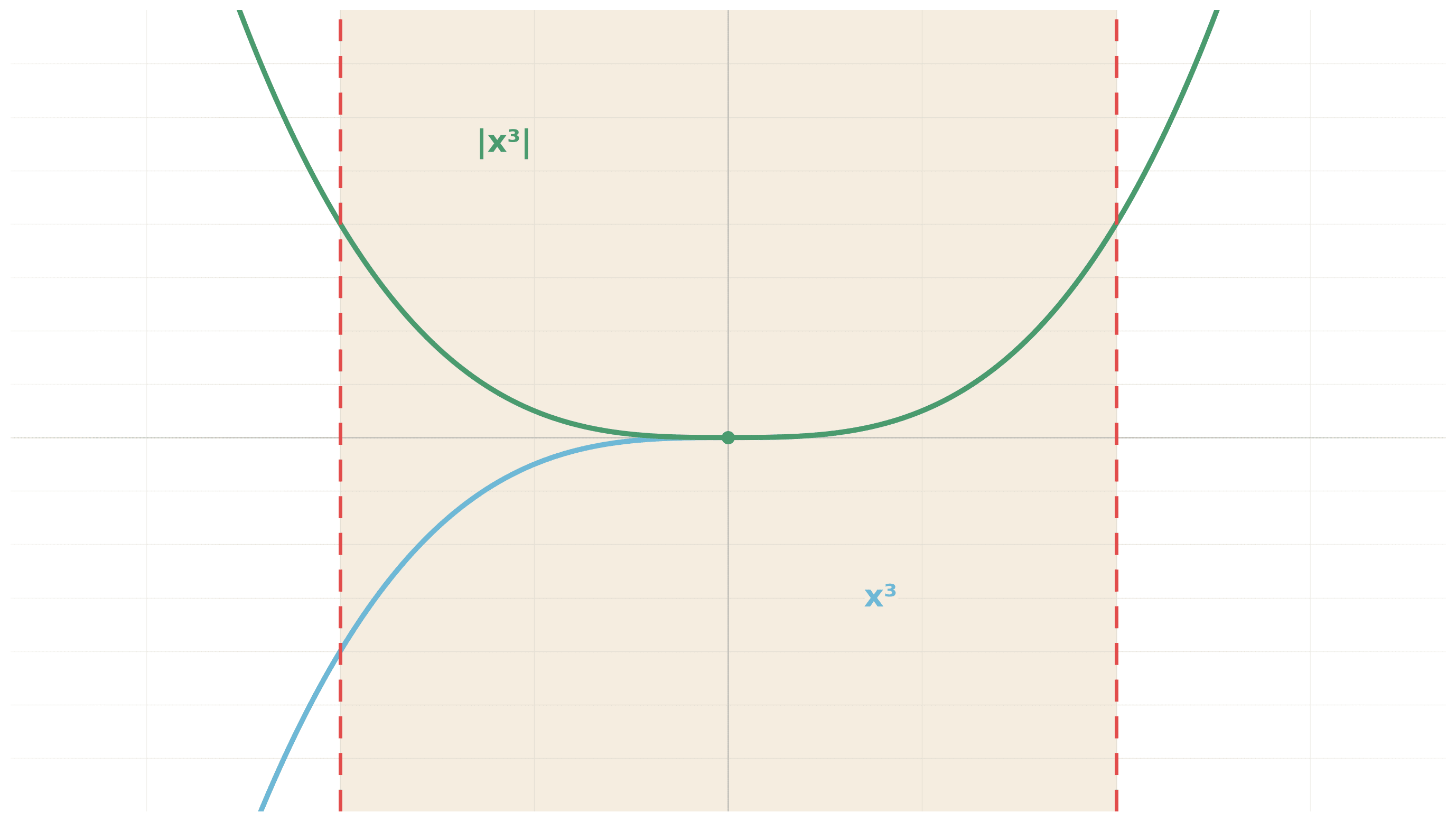

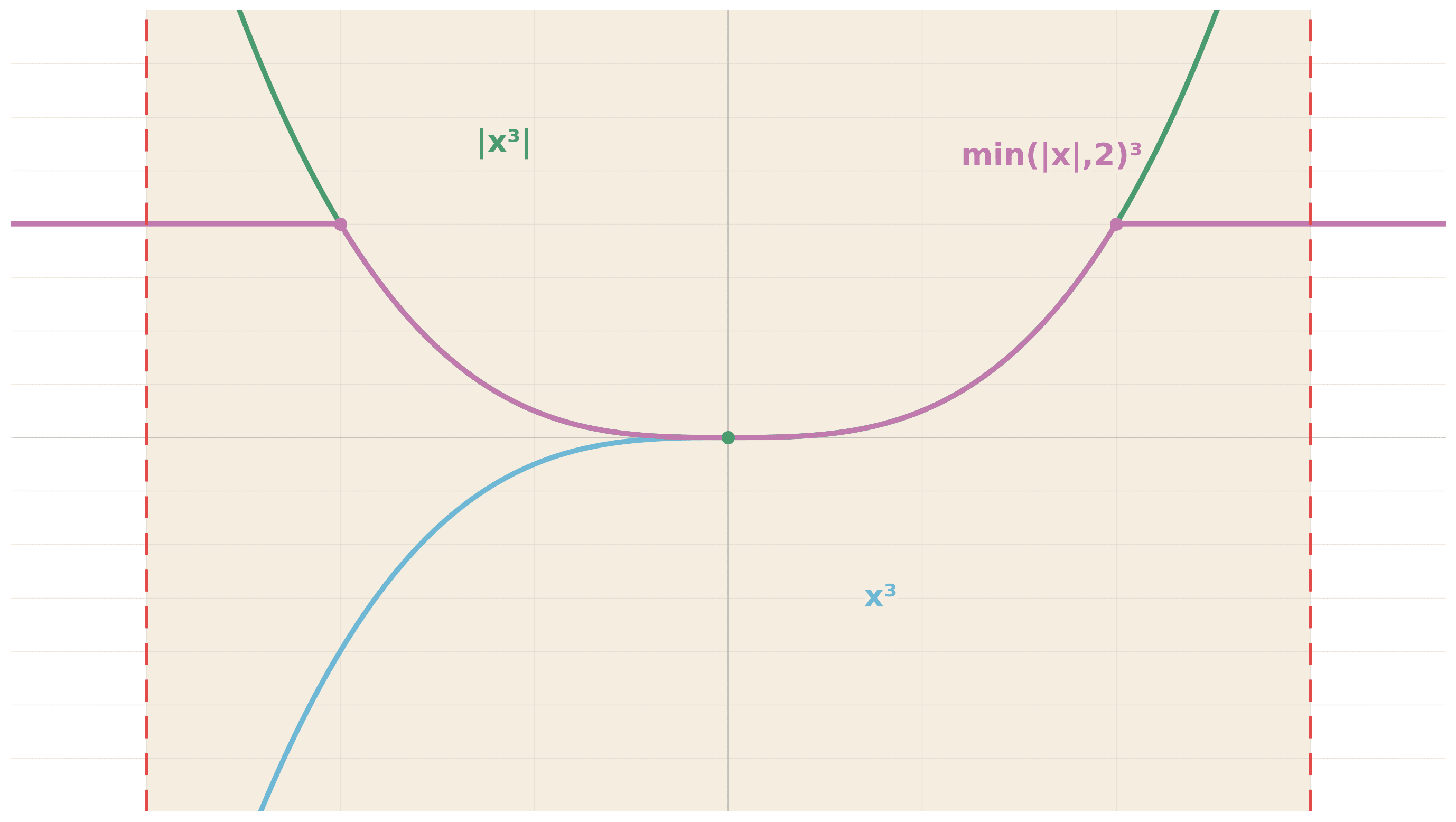

However, when we zoom out to include more data, we would find out that our original candidate is not so great anymore.
We could find another ‘perfect candidate’ again.
But the possibility that we will find ourselves in the same situation remains.
This is why observational faithfulness alone has limits. No matter how far we expand the domain, there’s always a larger one. To break out of this cycle, we need to look inside the circuit, not just at its outputs.
Out-of-Distribution Generalization
In our toy example, we can consider different transformations that would push our input out of distribution while preserving some relational structure among the input neurons.
For instance, we could have a multiplicative transformation.
IDEAL/CANONICAL:
(0,1)
TRANSFORMED:
(0, 10)

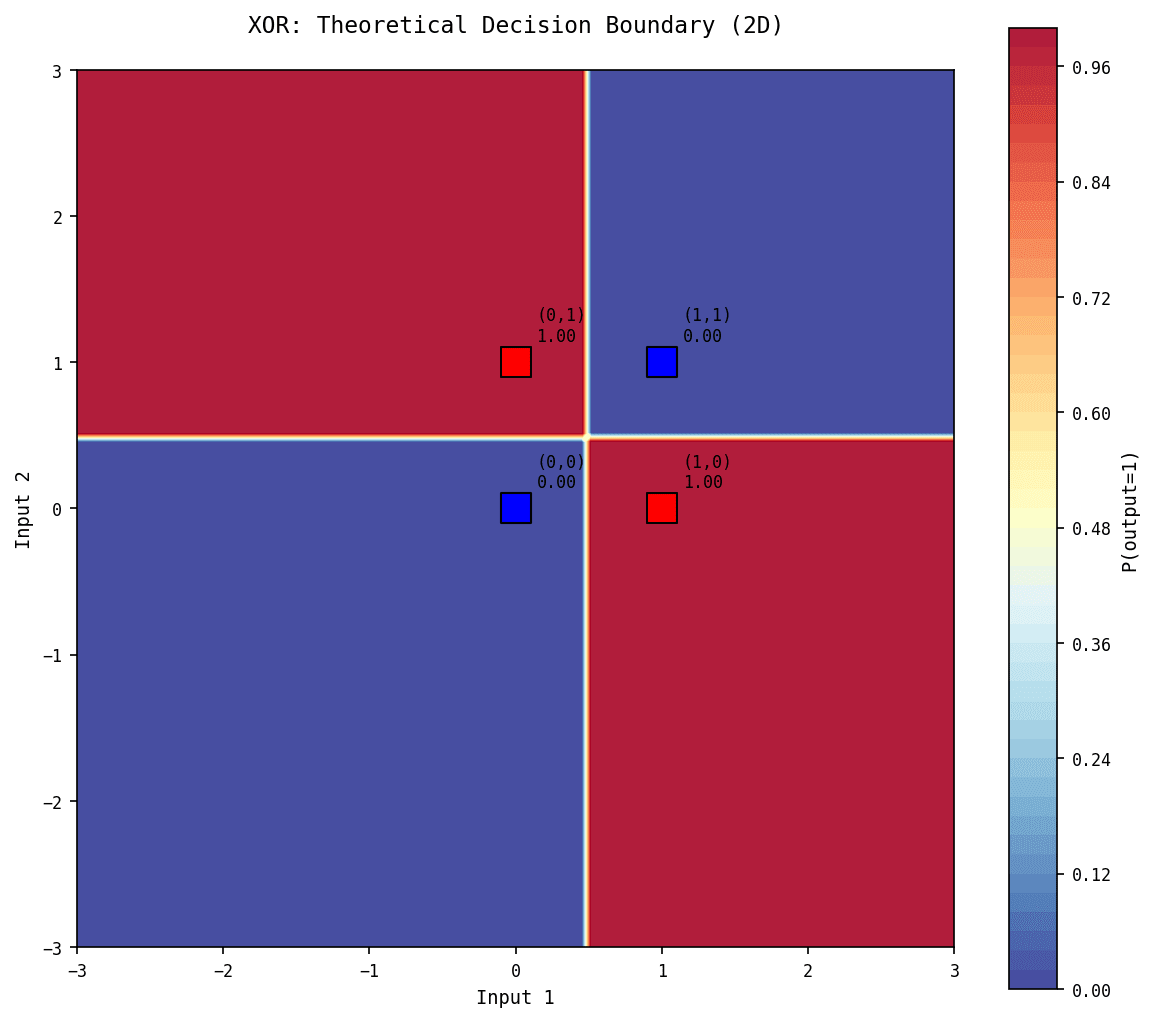

Recalling our ideal decision boundaries,
What the ideal XOR network would output for every logit.
We can establish that the ground-truth output value for the transformed input should be:
(0, 10) -> 1

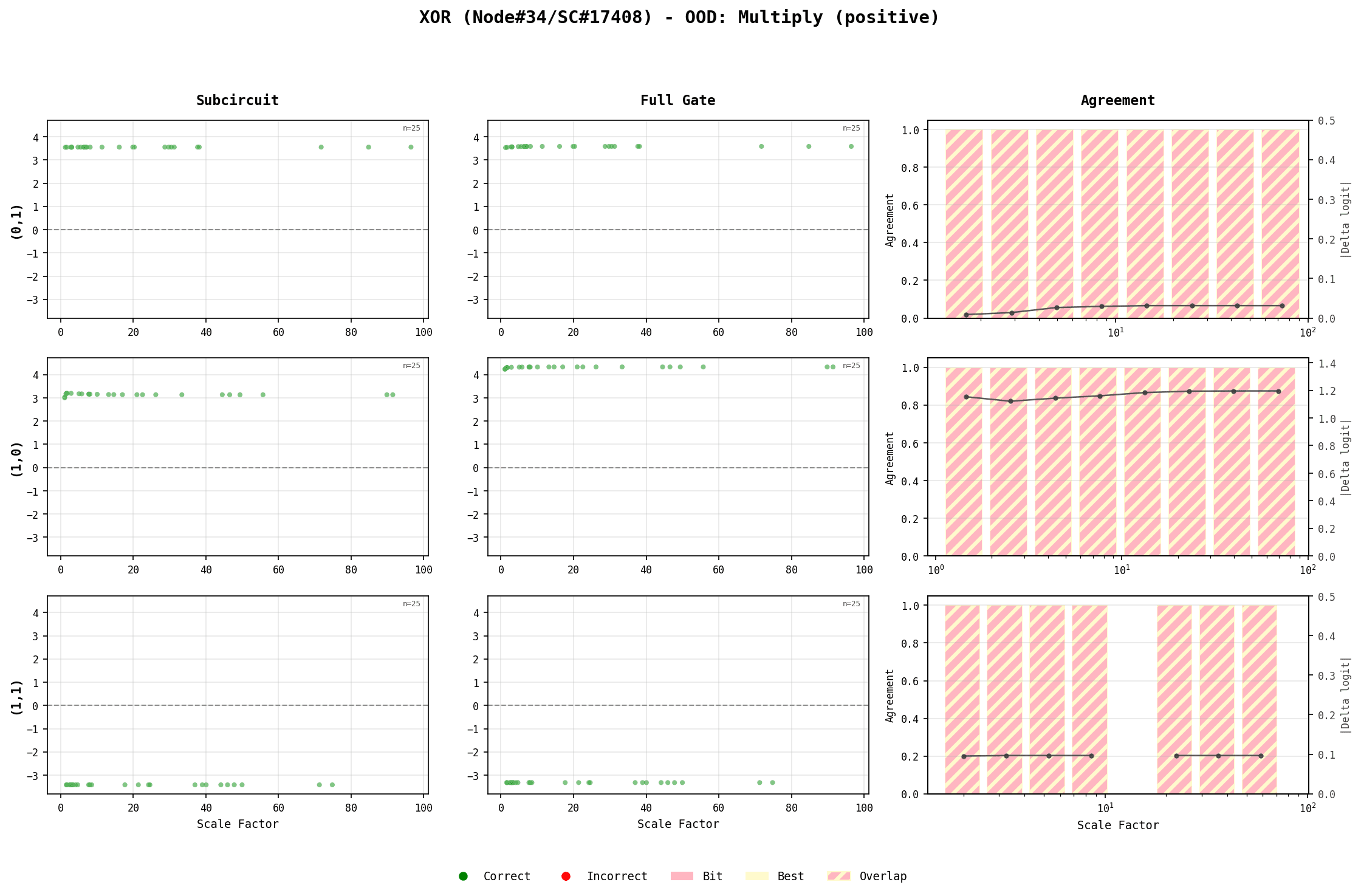

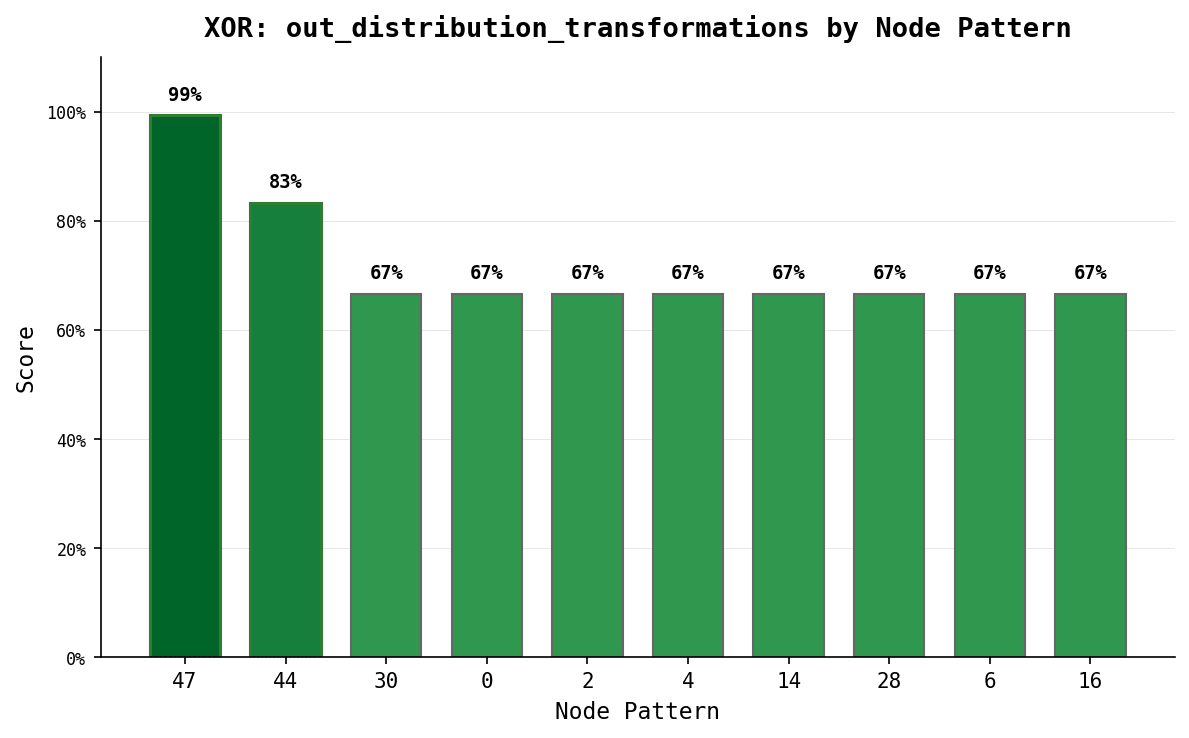

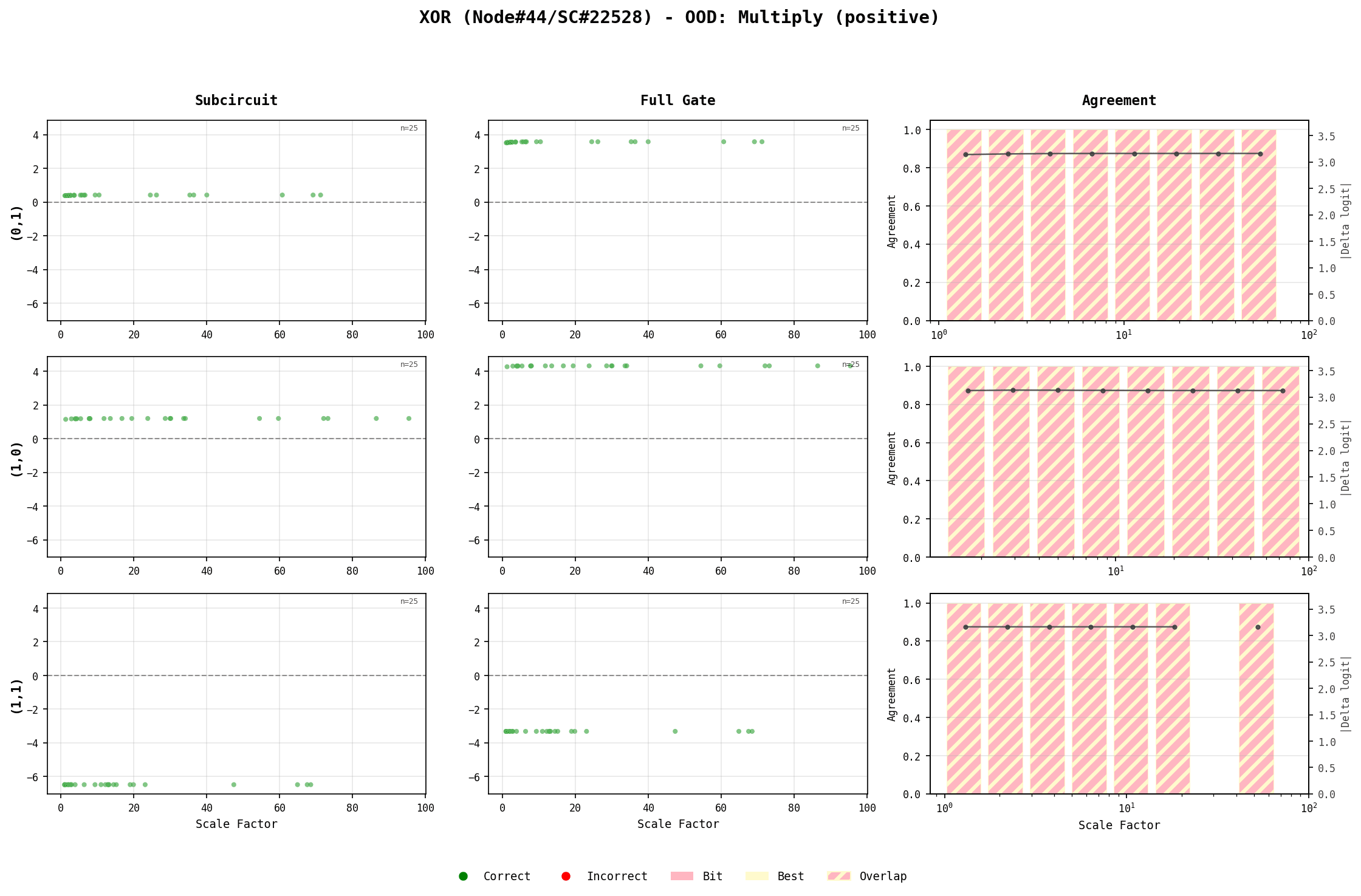

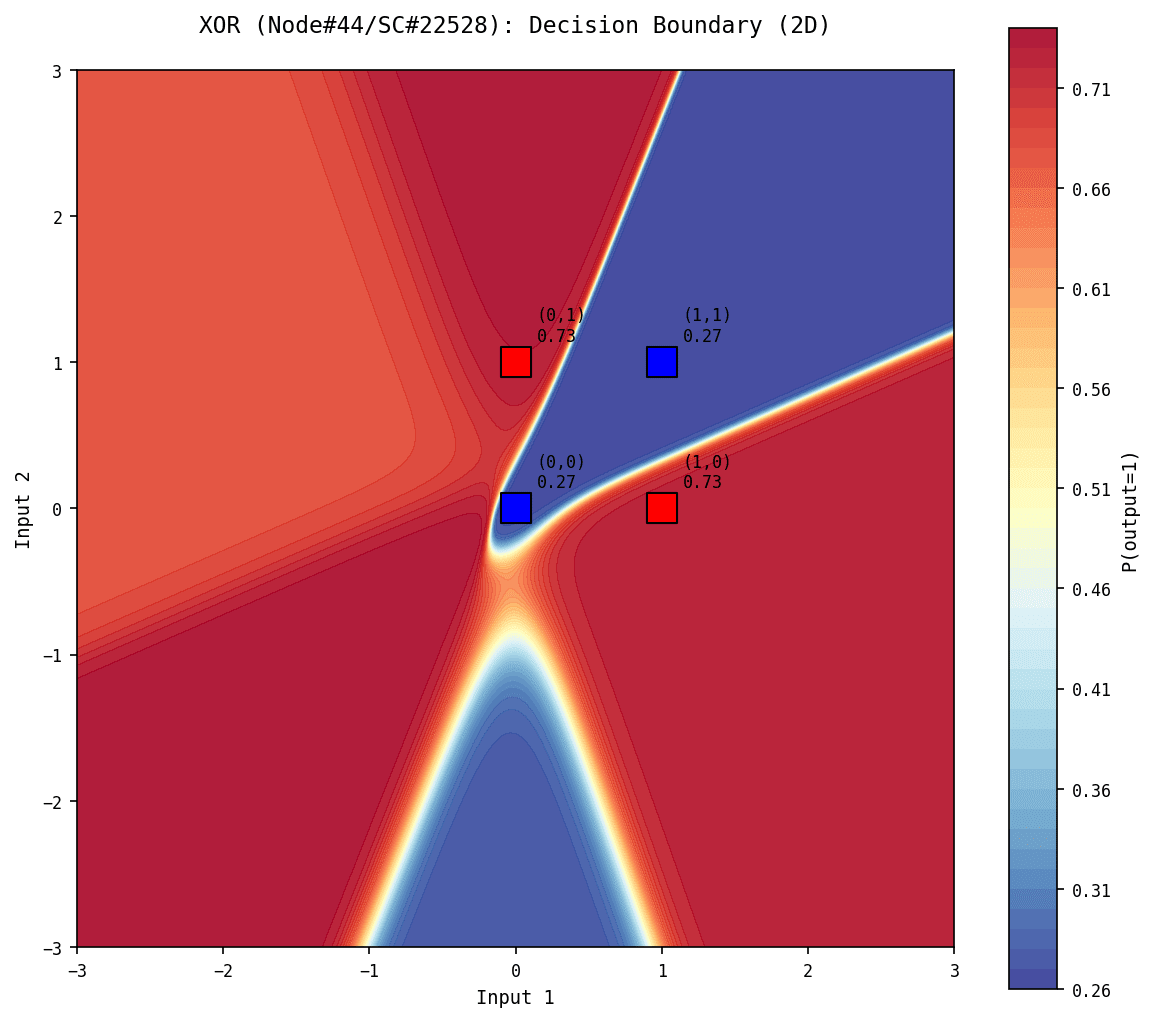

This is what it looks like for those top two subcircuits:
We cannot definitively differentiate the two subcircuits based on observations, even when evaluating on out-of-distribution inputs. It seems that just looking at inputs and outputs is not enough.
In the next post in the sequence, we will break open the black box and see whether interventions could help us compare subcircuit explanations more effectively.
Locality as Substrate
We’ve been widening the domain over which we test observational faithfulness: canonical inputs, noisy neighborhoods, out-of-distribution transformations. A domain specification is a context. In the language of MoSSAIC (Farr et al., 2025), a substrate is the layer of abstraction you hold fixed while doing your analysis. We typically worry about substrates like architecture or training paradigm shifting beneath us. But the evaluation domain is also a substrate, and a fragile one.
Changing how the full model was trained yields different conclusions from the same observational tests. This is substrate-sensitivity in miniature: same analysis, different ground, different answers.
When performing experiments, we introduced noise during training to obtain the best models possible. If we had just used the ideal input to train, our full model would have had very different decision boundaries:
Interestingly enough, if we redo our analysis in this scenario, looking at noise perturbations and out-of-distribution generalization, we get more differentiation among subcircuits:
But we still do not get definite answers: Subcircuit #44 is more robust to noise than subcircuit #47. But subcircuit #47 generalizes better than subcircuit #44.

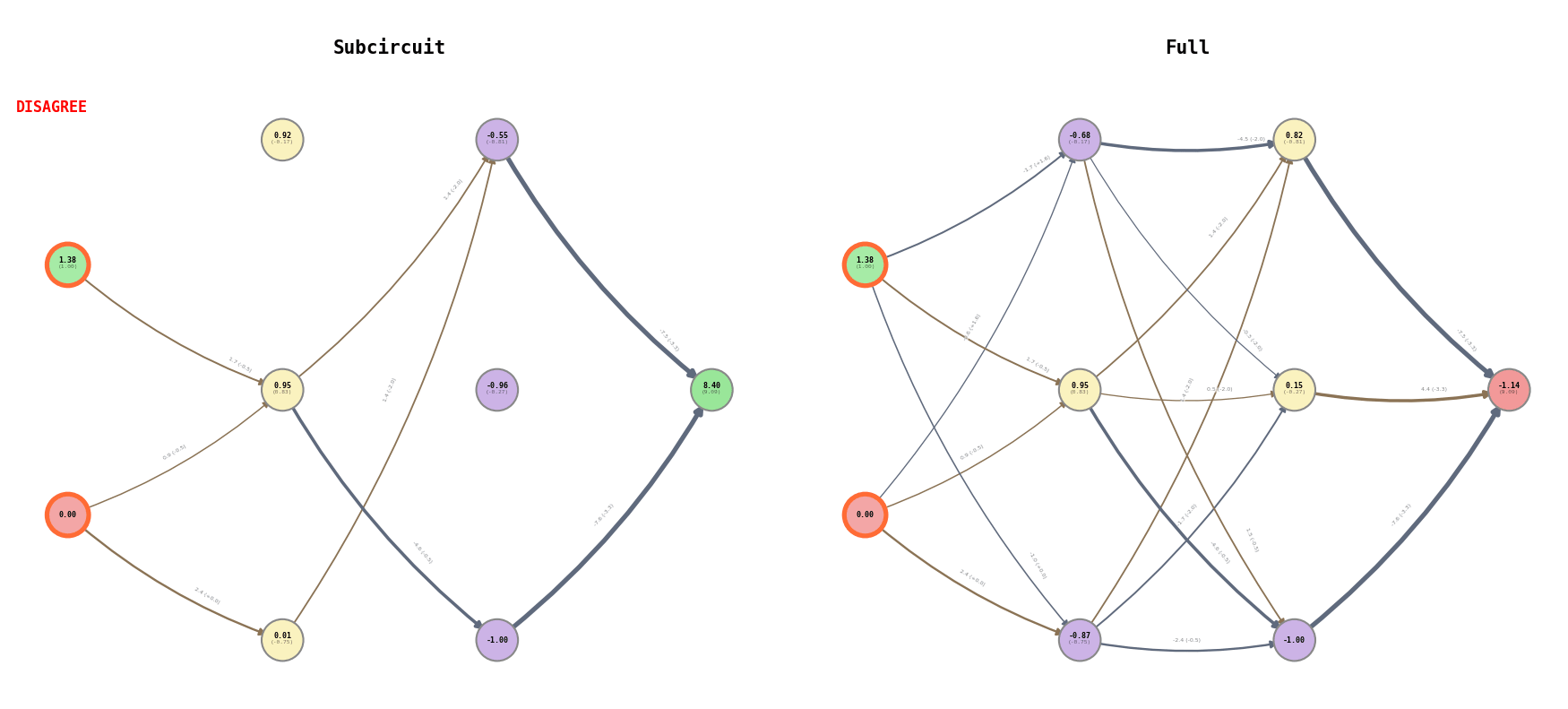

We sometimes also see unexpected situations, where some other subcircuits perform better than the full model, given some noise:
This subcircuit outperforms the full model for this input and noise.
The reliability of observational analyses for subcircuits hinges on how closely the full model tracks reality.
When the full model is a good approximation of the ground truth, its subcircuits inherit that structure, and observational tests can differentiate among them. When it isn’t, the subcircuits diverge in ways that tell us little about which one is “correct.”
In this toy example, the Boolean gate we study is fixed. But in real models, behaviors are more nuanced, and the reality they interact with is dynamic. Interpretations that are valid in one context may no longer be valid in another. The substrateshifts beneath.
In most real models, the alignment between the full model and reality is imperfect, so we must be especially careful about how local analyses extrapolate.
Unreliability of Extrapolation
To make this point explicit, let’s see how the subcircuits’ decision boundaries look in each scenario. We consider the top 2 subcircuits in each case.

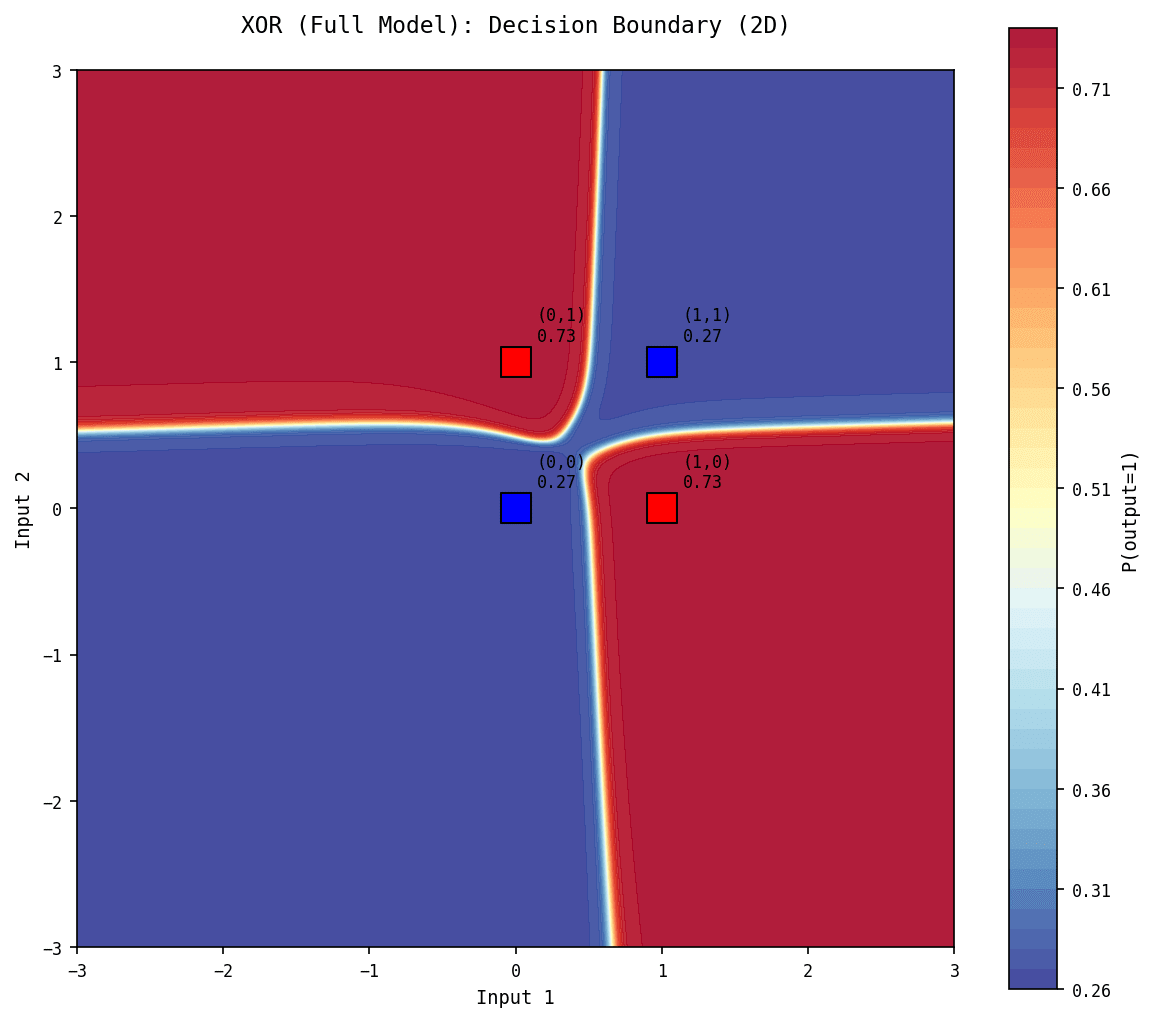

Scenario A: Full model trained with noise:
This is our original scenario:
In this case, the full model tracks reality more closely, so each subcircuit also tracks reality fairly closely. If we were to use either of these subcircuits, we could extrapolate somewhat reliably,

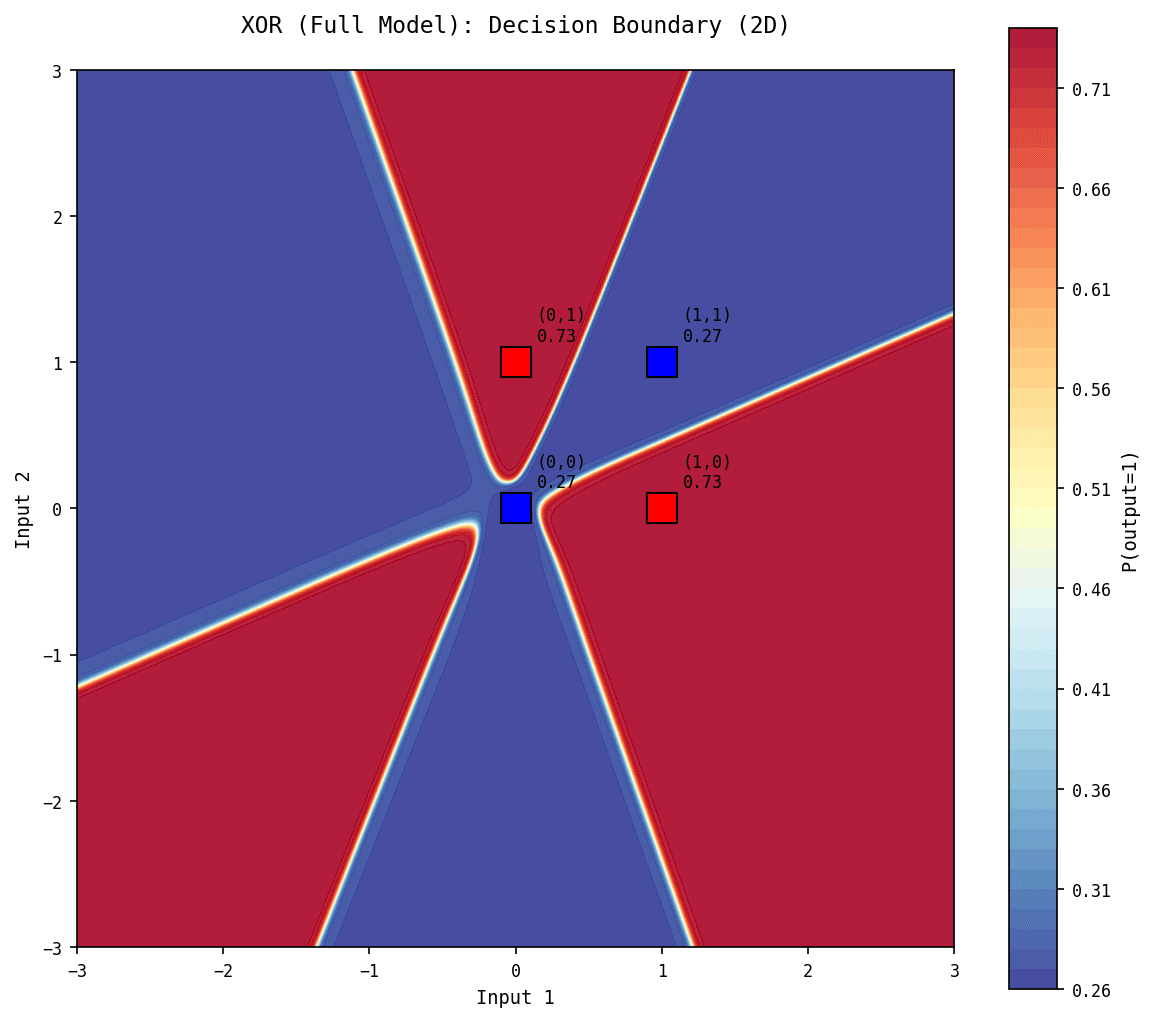

Scenario B: Full model trained without noise:
In this case, the full model does not track reality closely outside the ideal inputs, so each subcircuit shows very different behavior. Neither subcircuit yields a reliable extrapolation.
If we were just looking at the ideal inputs, these differences would be invisible to us.
Even if we looked at a neighborhood around the ideal inputs, we might miss how wildly different these proxy explanations (subcircuits) are.
Let’s recap what we’ve established:
Observational faithfulness is necessary but not sufficient to identify the correct subcircuit.
Expanding the test domain (noise, OOD inputs) helps, but cannot resolve the ambiguity in principle.
The informativeness of any observational test is bounded by how faithfully the full model itself tracks reality.
To break the tie, we need to look inside the circuit, not just at its behavior.
Next time, we open the black box and ask whether interventions can succeed where observation could not.
Technical consequence: Their loss (MSE) places the decision boundary at 0.5 and encourages hidden activations to stay in the 0 to 1 range. Ours (BCE) places the decision boundary at zero and pushes logits toward ±∞ in high-confidence regions.
MoSSAIC (Farr et al., 2025) also elaborates on how we often wrongly assume reliability of extrapolation. Misalignment could sneak upon us if we do not treat the domain of our explanations carefully.
